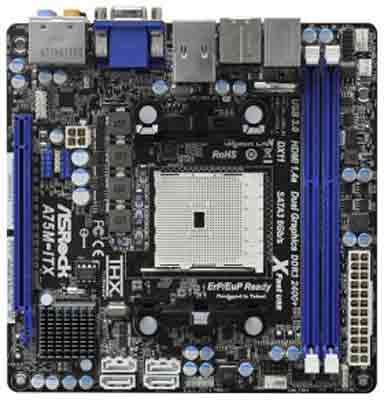

asRock A75M-ITX Motherboard
- Storage:
- 4x SATA3 6.0 Gb/s connectors, support RAID (RAID
0, RAID 1 and RAID 10), NCQ, AHCI and "Hot Plug" functions
- Rear Panel I/O Ports:
- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x Ready-to-Use USB 2.0 Ports
- 1 x eSATA3 Connector
- 4 x Ready-to-Use USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Rear Speaker / Central / Bass / Line in
/ Front Speaker / Microphone
- Internal I/O
Interface:
- 4 x USB 3.0 ports,
support USB 1.0/2.0/3.0 up to 5Gb/s
- 4 x SATA3 6.0 Gb/s connectors
- 1 x CIR header
- 1 x COM port header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 24 pin ATX power connector
- 4 pin 12V power connector
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
- Special Features:
- ASRock Extreme Tuning Utility (AXTU)
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock On/Off Play Technology
- Hybrid Booster:
- ASRock U-COP
- Support C.D: Drivers, Utilities, AntiVirus Software
(Trial Version), AMD Live! Explorer, AMD Fusion, CyberLink
MediaEspresso 6.5 Trial, ASRock Software Suite (CyberLink DVD Suite -
OEM and Trial; ASRock MAGIX Multimedia Suite - OEM)
- O.S: Microsoft ® Windows ® 7 / 7 64-bit /
Vista / Vista 64-bit / XP / XP 64-bit compliant
- Certifications: FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
|
Motherboard Specifications
- Model:
- asRock A75M-ITX Motherboard
- Processor Support:
- Support for Socket FM1 100W processors
- Supports AMD's Cool 'n' Quiet Technology
- UMI-Link GEN2
- Memory:
- Dual Channel DDR3 memory technology
- 2 x DDR3 DIMM slots
- Supports DDR3 2400+(OC)/1866/1600/1333/1066/800
non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB*
- Expansion Slots:
- 1 x PCI Express 2.0 x16 slot
- Supports AMD Dual Graphics
- On-Board Video:
- AMD Radeon HD 65XX/64XX graphics
- DirectX 11, Pixel Shader 5.0
- Max. shared memory 512MB
- Dual VGA Output: support HDMI and D-Sub ports by
independent display controllers
- Supports HDMI 1.4a Technology with max. resolution up
to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1600 @
60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and
HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a
- Supports AMD Steady Video: New video post processing
capability for automatic jitter reduction on home/online video
- Supports HDCP function with HDMI port
- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback
with HDMI port
- On-Board Audio:
- 7.1 CH HD Audio with Content Protection (Realtek ALC892
Audio Codec)
- Premium Blu-ray audio support
- Supports THX TruStudio
- On-Board LAN:
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
- Form
Factor/Dimensions:
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- All Solid Capacitor design (100% Japan-made
high-quality Conductive Polymer Capacitors)
- Hardware Monitoring:
- Chassis Temperature Sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Fan Multi-Speed Control
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
- Accessories:
- Quick Installation Guide, Support CD, I/O Shield
- BIOS:
- 32Mb AMI UEFI Legal BIOS with GUI support
- ACPI 1.1 Compliance Wake Up Events
- DRAM, VDDP, VDDR, SB Voltage Multi-adjustment
|
