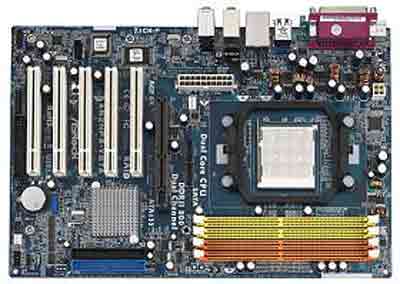

asRock AM2NF3-VSTA Motherboard

asRock AM2NF3-VSTA Motherboard

• Storage:
  • 2 x SATA 1.5 Gb/s connectors, support RAID* (RAID 0, RAID 1, JBOD) and "Hot Plug" functions

• Rear Panel I/O Ports:

  • 1 x PS/2 Mouse Port
  • 1 x PS/2 Keyboard Port
  • 1 x Serial Port: COM1
  • 1 x Parallel Port (ECP/EPP support)
  • 4 x Ready-to-Use USB 2.0 Ports
  • 1 x RJ-45 Port
  • Audio Jack: Side Speaker / Rear Speaker / Central Bass / Line in / Front Speaker / Microphone

• Internal I/O Interface:

  • 2 x SATA 1.5 Gb/s connectors, support RAID* (RAID 0, RAID 1, JBOD) and "Hot Plug" functions
  • 2 x ATA133 IDE connectors (support 4 x IDE devices)
  • 1 x Floppy connector
  • 1 x IR header
  • 1 x Game header
  • CPU/Chassis FAN connector
  • 20 pin ATX power connector
  • 4 pin 12V power connector
  • CD in header
  • Front panel audio connector
  • 2 x USB 2.0 headers (support 4 USB 2.0 ports; 2 of them are shared with USB23 ports on the I/O panel)


• Special Features:

  • Hybrid Booster:
  • CPU Frequency Stepless Control
  • ASRock U-COP
  • Boot Failure Guard (B.F.G.)
  • ASRock AM2 Boost: ASRock Patented Technology to boost memory performance up to 12.5%
  • Support C.D: Drivers, Utilities, AntiVirus Software (Trial Version)
  • O.S: Microsoft ®Â Windows ®Â 2000 / XP / XP 64-bit / Vista / Vista 64-bit compliant
  • Certifications: FCC, CE, WHQL





Motherboard Specifications

• Model:
  • asRock AM2NF3-VSTA Motherboard


• Processor Support:

  • Support for Socket AM2+* / AM2 processors: AMD Phenom FX / Phenom / Athlon 64 FX / Athlon 64 X2 Dual-Core / Athlon X2 Dual-Core / Athlon 64 / Sempron processor
  • Supports AMD's Cool 'n' Quiet Technology
  • Supports Untied Overclocking Technology
  • Supports Hyper-Transport Technology
  • AM3 CPU Ready*

• Chipset:
  • NVIDIA ®Â nForce3 250

• Memory:

  • Dual Channel DDR2 memory technology
  • 4 x DDR2 DIMM slots
  • Supports DDR2 1066*/800/667/533 non-ECC, un-buffered memory
  • Max. capacity of system memory: 16GB*

• Expansion Slots:

  • 5 x PCI slots
  • 1 x AGP 8X slot*

• On-Board Audio:
  • 7.1 CH Windows ®Â Vista Premium Level Superior Audio (C-Media CM6501 Audio Codec with UAA architecture)

• On-Board LAN:

  • Realtek PHY RTL8201CL
  • Speed: 10/100 Ethernet
  • Supports Wake-On-LAN
  • Supports PXE

• Form Factor/Dimensions:
  • ATX Form Factor: 12.0-in x 8.0-in, 30.5 cm x 20.3 cm
• Hardware Monitoring:

• CPU Temperature Sensing
• Chassis Temperature Sensing
• CPU Fan Tachometer
• Chassis Fan Tachometer
• CPU Quiet Fan
• Voltage Monitoring: +12V, +5V, +3.3V, Vcore
• Accessories:

• Quick Installation Guide, Support CD, I/O Shield
• Floppy/ATA 133 Cables
• 1 x SATA Data Cable
• 1 x SATA 1 to 1 Power Cable
• BIOS:

• 4Mb AMI BIOS
• AMI Legal BIOS
• Supports "Plug and Play"
• ACPI 1.1 Compliance Wake Up Events
• Supports Jumperfree
• SMBIOS 2.3.1 Support
