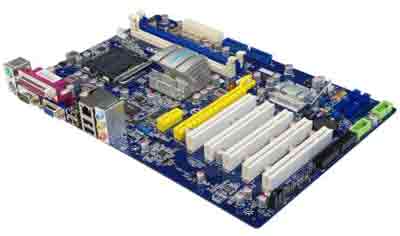

Foxconn G41AP Motherboard

Foxconn G41AP Motherboard

• Storage:
  • IDE: 1 * ATA 100
  • 4* SATAII

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x VGA port
    1 x Parallel port
    1 x Audio jack supports 3 jacks
    4 x USB 2.0 ports
    1 x Serial port
    1 x RJ45 LAN port

• Internal I/O Interface:
  • 1 x ATX 24-Pin power connector
    1 x 4-pin ATX 12V power connector
    2 x 4-pin CPU / System / NB FAN connectors
    1 x CD-in connector
    1 x Floppy connector
    1 x IDE connector
    1 x Speaker header
    2 x USB 2.0 connectors support additional 4 ports
    4 x Serial ATAII connectors
    1 x Intruder Alarm header
    1 x Front Audio header
    1 x S/PDIF Out header
    1 x Front Panel header
    1 x COM header

Motherboard Specifications

• Model:
  • Foxconn G41AP Motherboard


• Processor Support:
  • Supports LGA 775 for Intel ® Core2 Quad, Core2 Duo, Pentium Dual- Core, Celeron Dual- Core processors,Supports Intel 45nm multi-core CPU

• Chipset:
  • Intel ® G41 & ICH7

• FSB:
  • 1333/1066/800MHz

• Memory:
  • Dual channel DDR3 1333(oc)/1066/800，2* DIMMs, Max 8GB

• Expansion Slots:
  • 1* PCIe x16 slot
    1* PCIe x1 slot
    5* PCI bus slots

• On-Board Video:
  • VGA: Integrated Intel ® GMA 4500

• On-Board Audio:
  • 5.1 channel HD Audio

• On-Board LAN:
  • Gigabit LAN

• Form Factor/Dimensions:
  • ATX (12.0"x 8.0")
• BIOS:
  • 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0

• Special Features:
  • Support C.D: WHQL Drivers, Adobe Reader 7.07, Direct x 10.0, Norton 2006

• Manageability:
  • PCI 2.3, USB2.0, DMI 2.5
