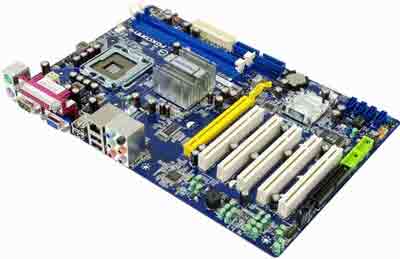

Foxconn G31AX-S Motherboard

Foxconn G31AX-S Motherboard

• Storage:
  • IDE: 1*ATA100
  • 4* SATAII

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard port
    1 x PS/2 mouse port
    1 x VGA port
    1 x Serial port
    1 x Parallel port
    1 x Audio jack supports 6 jacks
    4 x USB 2.0 ports
    1 x RJ45 LAN ports

• Internal I/O Interface:
  • 1 x ATX 24-pin power connector
    1 x 4-pin power connector
    2 x 4-pin CPU / System fan connectors
    3 x USB power headers
    1 x Floppy disk drive connector
    1 x CD-in connector
    1 x Front Panel header
    1 x Front Audio header
    2 x USB 2.0 headers support additional 4 ports
    4 x Serial ATAII connectors
    1 x ATA100 IDE connector
    1 x S/PDIF out header
    1 x Intrusion Alarm header
    1 x IrDA header
    1 x Speaker

Motherboard Specifications

• Model:
  • Foxconn G31AX-S Motherboard


• Processor Support:
  • Intel ® Core2 Quad, Core2 Duo, Pentium ® Dual-Core, Pentium ® D, Pentium ® 4, Celeron ® processors, Socket T (LGA775)
    Supports Intel ® next generation 45nm Multi-Core processors

• Chipset:
  • Intel ® G31 + ICH7

• FSB:
  • 1333 / 1066 / 800 / 533(**)MHz (FSB)

• Memory:
  • Dual channel DDR2 800/667 x 2 DIMMs, Max 4GB

• Expansion Slots:
  • 1* PCIe x16, 5* PCI

• On-Board Video:
  • VGA: Integrated

• On-Board Audio:
  • 7.1 channel HDA, Realtek ® ALC888-GR

• On-Board LAN:
  • Gigabit Lan , Broadcom ® BCM5784

• Form Factor/Dimensions:
  • ATX (12� x 8.0�)
• BIOS:
  • 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI 2.0

• Special Features:
  • Support C.D: WHQL Drivers, Adobe Reader, Direct X, Norton
  • ** Please refer to our CPU support list for detailed 533 FSB CPU support

• Manageability:
  • PCI 2.3, USB2.0, DMI 2.5
