Home > Motherboards and Multi-Media > ZOTAC GeForce 9300-ITX-WiFi-D

Click here to go back

114530 - ZOTAC GeForce 9300-ITX-WiFi-D
Condition: New . Warranty:1 year .



ZOTAC GeForce 9300-ITX-WiFi-D Motherboard. Specifications, price and availability

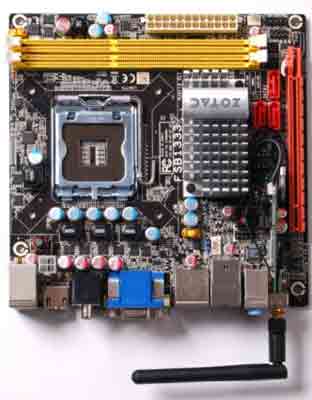

ZOTAC GeForce 9300-ITX-WiFi-D Motherboard

Intel Socket LGA775 Motherboard, with on board audio, video and LAN, 12 USB Ports, 3 SATA Ports, 1 eSATA, 2 DIMM Slots and mini-ITX Form Factor



ZOTAC GeForce 9300-ITX-WiFi-D Motherboard

ZOTAC GeForce 9300-ITX-WiFi-D Motherboard

  • Storage:
    • 3 (SATA 3.0 Gb/s w/RAID 0 / 1 / 0+1 / 5)
    • eSATA: 1 (SATA 3.0 Gb/s)
  • Rear Panel I/O Ports:
    • DVI: 1 (HDCP Dual-link)
    • HDMI: 1 (1080p w/8-ch audio)
  • Internal I/O Interface:
    • 1 Serial port header
    • 12 x USB 2.0 (6 on back panel / 6 via pin headers)
  • Special Features:
    • O.S: Windows Vista / 7 Premium ready
    • Maximum Resolution: 2048 x 1536
    • Wake-on USB Wake-on-LAN
  • Hardware Monitoring:
    • Cooler: Passive (no fan)

Motherboard Specifications

  • Model:
    • ZOTAC GeForce 9300-ITX-WiFi-D Motherboard
  • Processor Support:
    • LGA775
  • Chipset:
    • NVIDIA GeForce 9300
    • NVIDIA GeForce 9300 Engine clock: 580 MHz Shader clock: 1400 MHz
  • FSB:
    • Up to 1333 MHz
  • Memory:
    • DDR3
    • 1333 MHz
    • 2 x 240-pin DIMM
    • Up to 16GB
    • DirectX 10
    • OpenGL 2.1
  • Expansion Slots:
    • 2 x 240-pin DIMM
  • On-Board Video:
    • 1 DVI / 1 HDMI / 1 VGA
  • On-Board Audio:
    • 6-ch HD
    • Optical S/PDIF / Coaxial and HDMI outputs
  • On-Board LAN:
    • 10/100/1000Mbps
    • WiFi: 802.11g/b
  • Form Factor/Dimensions:
    • mini-ITX
