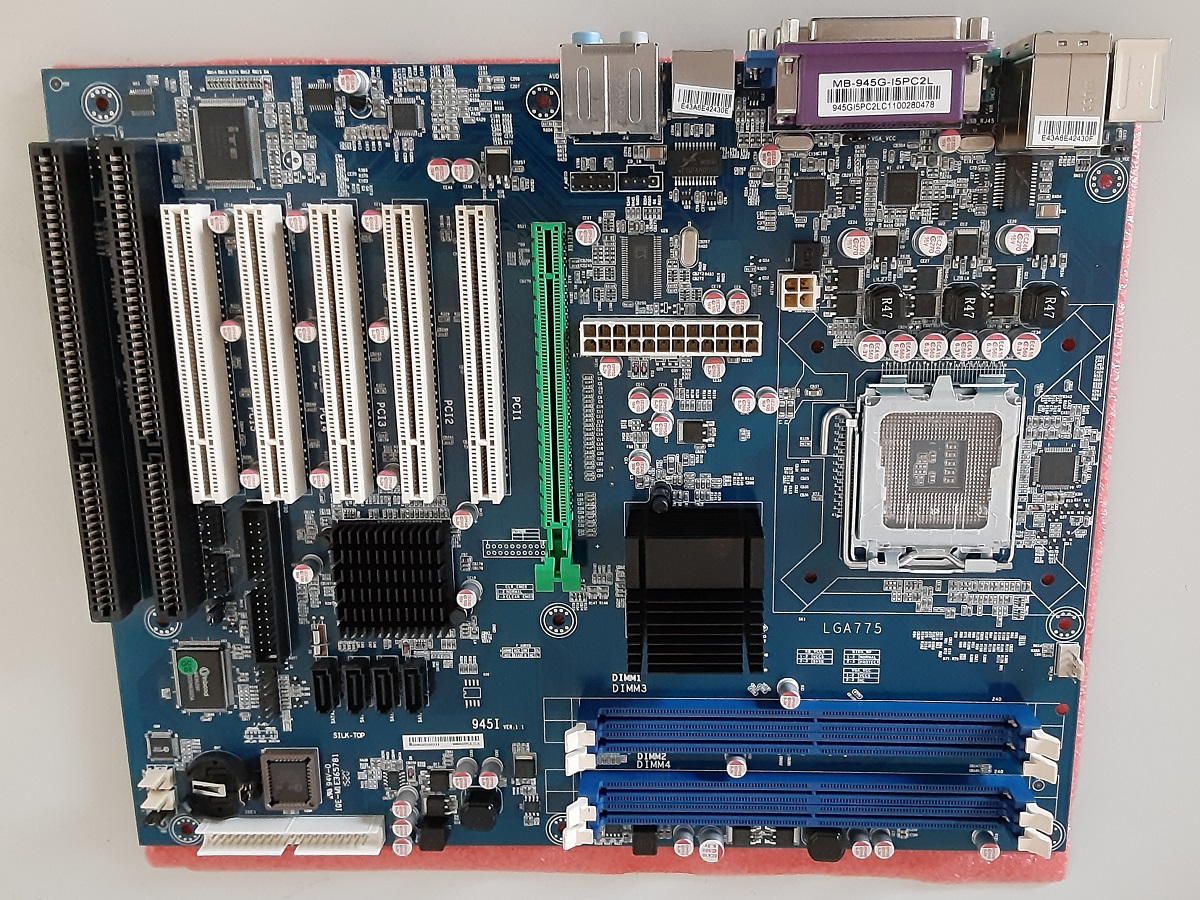

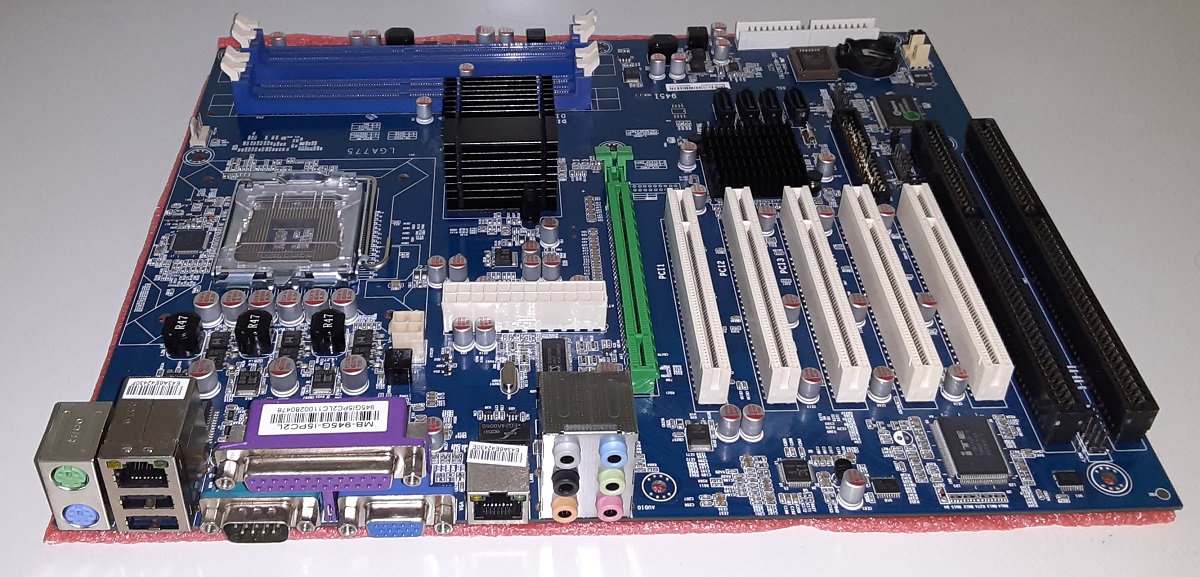

MB-945G-I5PC2L Socket 775 Pentium 4 Motherboard with 2 ISA slots

Part # 307718

Condition : New- Retail Box | Warranty : 30 days

Brand : Interloper
0 review | Add Your Review

$250.00

MB-945G-I5PC2L

Socket 775 Pentium 4 Motherboard with 2 ISA slots

5 PCI, 1 PCIe16x, 2 ISA slots, 4 DDR2 slots, Intel 945GV + ICH7 chipset

Socket 775 Pentium 4 Motherboard with 2 ISA slots, 5 PCI, 1 PCIe16x



Pentium 4 Motherboard with 2 ISA slots, socket 775Motherboard Specifications



  • Storage:
    • 1 x UltraDMA 100/66 Connector for IDE drives
    • 1 x Floppy drive port
    • Supports ATA-100, Data Transfer Rate of 100MB/s
    • 4 x SATA ports
  • Rear Panel I/O Ports:
    • 2 X PS/2 ports for mouse and keyboard
    • 1 X External serial port, 1 via header
    • 1 X VGA port
    • 1 X parallel printer port
    • 2 X Gigabit LAN ports
    • 6 X USB 2.0 ports - 2 external, 4 via  USB header
    • Vertical audio jacks for microphone line-in and line-out
    • ATX power connector + 12V(4PIN)

  • On-Board LAN:
    • IT8712F LPC Controller, RTL8111C Ethernet Controller

  • Form Factor:
    • ATX
    • Dimensions: 12"W x 9.6"D

Motherboard Specifications

  • Chipset:
    • Intel 945GV+ICH7 with support for 2 ISA slots
  • Processor Support:
    • Intel LGA775 Pentium 4/Celeron 4 below E7600
    • Intel Core2 Duo / Pentium D / Pentium 4 / Celeron D
  • FSB:
    • 400/533/667/1066 MHz
  • Memory:
    • 4 x DDR2 400/533/667
    • Max 4GB
  • Expansion Slots:
    • 2 x ISA slots
    • 5 x PCI slots
    • 1 x PCIe16X slot
  • On-Board Video:
    • Integrated Intel Graphics Media Accelerator 950
    • Performance Hardware Core Frequency 400 MHz, 224MB display memory
  • On-Board Audio:
    • Compliant with AC'97 2.3 specifications

Socket 775 Pentium 4 Motherboard with 2 ISA slots, 5 PCI, 1 PCIe16x
