• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 x PS/2 Mouse
  • 1 x S/PDIF Out
  • 7.1 Channel audio connectors
  • 6 x USB 2.0/1.1 ports
  • 1 x IEEE 1394a
  • 1 x RJ 45 Port


• Power Connector :
  • 1 x 24 pin main power
  • 1 x 4 pin CPU power


• On-Board LAN:
  • PCIe Gb LAN controller featuring AI NET 2


• Form Factor:
  • ATX Form Factor
  • 12 inch x8.6 inch ( 30.5 cm x21.8 cm )

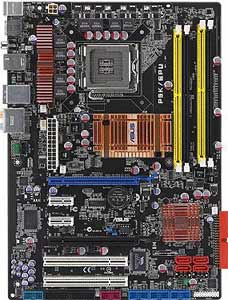

Asus P5K/EPU Motherboard

• Model:
  • Asus P5K/EPU Motherboard

• Processor Support:
  • Supports Intel ® Core2 Quad / Core2 Extreme / Core2 Duo / Pentium ® Extreme / Pentium ® D / Pentium ® 4 / Celeron ® D
  • Compatible with Intel ® 05B/05A/06 processors
  • Support Intel ® next generation 45nm Multi-Core CPU
  • Socket LGA 775


• FSB:
  • 1600/1333/1066/800 Mhz


• Chipset:
  • Intel ® P35

• Memory:
  • 4x 240-pin DDR2 DIMM socket support up to 8 GB
  • Support Dual Channel DDR2 1200*/1066/800/667 Mhz
  • Non-ECC, un-buffered
  • *Overclock speed


• Expansion Slots:
  • 2 x PCIe x16 (blue @ x16 mode, black @ x4 or x1 mode) supports CrossFire Technology
  • 2 x PCIe x1
  • 2 x PCI 2.2


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 xSATA 3 Gb/s


• Firewire:
  •
    VIA VT6308P controller supports 2 x 1394a ports


• Audio:
  • Realtek ALC 883, 8-channel High Definition Audio CODEC
  • Coaxial S/PDIF out ports at back I/O
  • Support Jack-Sensing, Enumeration, Multi-streaming
  • ASUS Noise Filter


• BIOS:
  • 8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI v3.0, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
  • WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE
