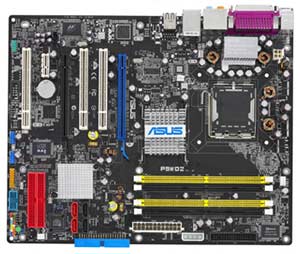

Asus P5WD2 Socket 775 Motherboard

Asus P5WD2 Premium Motherboard

Socket 775 Motherboard with Integrated LAN, USB, 3 PCI, SATA, and Overclocking features.

Asus P5WD2 Socket 775 Motherboard with Integrated LAN, USB, 3 PCI, SATA, and Overclocking features.

Internal I/O Interface:
- 2 x USB 2.0 connectors supports additional 4 USB 2.0 ports
- 1 x COM connector
- 1 x GAME/MIDI connector
- CPU/ 2*Chassis / Power Fan connectors
- Front panel High Definition Audio connector
- Chassis Intrusion connector
- CD audio-in connector
- 24-pin EATX Power connector
- 4-pin ASUS EZ Plug connector
- 2 x 4-pin EATX12V Power Connector
Storage:
- Intel^® ICH7R South Bridge:
- *1 x UltraDMA 100/66/33
- *4 x Serial ATA I/II 3.0Gb/s with Intel Matrix Storage
- Technology with RAID 0, 1, 5, 10 support
- ITE IDE controller:
- * 2 x UltraDMA 133/100/66

BIOS:
- 8Mb Flash ROM
- AMI BIOS
- PnP
- DMI2.0
- WfM2.0
- SM BIOS 2.3
- CrashFree BIOS 2
- Q-Fan2
- Multi-language BIOS
- MyLogo2

Accessories:
- 4 x SATA cables
- 2 x 2-port SATA power cable for 4 devices
- 1 x 2-port USB2.0 / Game module
- 1 x COM Port module
- 1 x GT Soft Bridge for future upgrade
- 2 x UltraDMA 133/100/66 cable
- 1 x IDE cable
- 1 x FDD cable
- 1 x I/O Shield
- User' s manual

Motherboard Specifications

Processor Support:
- LGA775 socket for Intel^® Pentium 4/Celeron CPU
- Intel Pentium^® Processor Extreme Edition & Intel Pentium^® D Processor ready
- Compatible with Intel^® 05B/ 05A and 04B/04A processors
- Intel^® Hyper-Threading Technology ready

Chipset:
- Intel^® 955X
- Intel^® ICH7R
FSB:
- 1066 / 800 / 533 MHz
Memory:
- Dual channel memory architecture
- 4 x 240-pin DIMM sockets support max. 8GB DDR2 800/ 667/ 533 ECC and non-ECC memory
- Native DDR2 800 Support
- Intel MPT (Intel Memory Pipeline Technology)
- ASUS Hyper Path3

Expansion Slots:
- 1 x PCI Express x16 slot for discrete graphics card
- 1 x PCI-E graphics slot (max. x4 mode)
- 1 x PCI Express x1
- 3 x PCI
On-Board Audio:
- Realtek ALC882 High Definition Audio
- 8-channel CODEC
- Support Multi-streaming
- Jack-sensing
- Jack-retasking
- Coaxial S/PDIF out on back I/O port

On-Board LAN:
- Marvell 88E8001 Gigabit LAN Controller, featuring AI NET2
Rear Panel I/O Ports:
- 1 x Parallel
- 1 x Coaxial S/PDIF Output
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x RJ45
- 4 x USB 2.0/1.1
- 8-Channel Audio I/O

Overclocking Features
- AI NOS (Non-delay Overclocking System)
- ASUS CPU Lock Free
- ASUS PEG Link
- Precision Tweaker:
- vDIMM: 8-step DRAM voltage control
- vCore: Adjustable CPU voltage at 0.0125 increment
- SFS (Stepless Frequency Selection): allowing FSB tuning from 100MHz up to 450MHz at 1MHz increment
- PCIe x16 Frequency: allowing PCIe x16 frequency from 90MHz up to 150MHz at 1MHz increment
- AI Overclocking (intelligent CPU frequency tuner)
- Adjustable FSB/DDR ratio. Fixed PCI/PCIe frequencies.
- ASUS AI Booster utility
- ASUS C.P.R.(CPU Parameter Recall)
