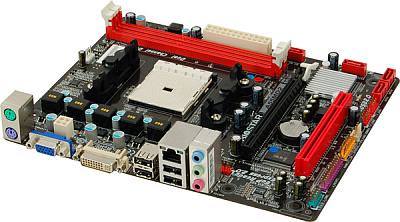

BIOSTAR A55MD2 Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 Mouse
  • 1 x PS/2 Keyboard
  • 4 x USB 2.0 Port
  • 1 x DVI Connector
  • 1 x VGA Port
  • 1 x RJ-45 Port
  • 3 x Audio Connector
• Internal I/O Interface:
  • 1 x Printer Header
  • 2 x USB 2.0 Header
  • 4 x SATA2 3Gb/s Connector
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x CPU FAN Header
  • 1 x System FAN Header
  • 1 x Serial Header

• USB Ports:
  • 4 x USB 2.0 Port
  • 2 x USB 2.0 Header
• Accessories:
  • 2 x SATA Cable
  • 1 x I/O Shield
  • 1 x DVD Driver
  • 1 x Quick Guide
• On-Board LAN:
  • Realtek RTL8111F - 10/100/1000 Controller

• OS SUPPORT:
  • Support Windows XP / Vista / 7 / 8

Motherboard Specifications

• Model:
  • BIOSTAR A55MD2 Motherboard

• CPU:
  • AMD A10 Processor
  • AMD A8 Processor
  • AMD A6 Processor
  • AMD A4 Processor
  • AMD E2 Processor
  • AMD Athlon II X4 Processor
  • Maximum CPU TDP (Thermal Design Power) : 100Watt
• Chipset:
  • AMD A55
• Memory:
  • Support Dual Channel DDR3 1866/1600/1333/1066/800 MHz
  • 2 x DDR3 DIMM Memory Slot
  • Max. Supports up to 32GB Memory
• Expansion Slots:
  • 1 x PCI-E x16 2.0 Slot
  • 1 x PCI Slots
• On-Board Audio:
  • Realtek ALC662 6-Channel HD Audio
• On-Board Video:
  • By CPU model
  • AMD Dual Graphics Technology
  • Supports DX11
  • VGA Port
  • DVI Port
• Storage:
  • 4 x SATA2 Connector
  • Support SATA RAID: 0,1,10
• Special Features:
  • Windows 8 Ready
  • Supports BIO-Remote2
  • Supports Solid capacitor
  • Supports BIOS-Flasher
  • Supports Charger Booster
  • Supports BIOS Online Update
• Form Factor:
  • Micro ATX Form Factor
  • Dimension: 22.6cm x 17.8cm ( W x L ) (8.9 Inch x 7.0 Inch)
