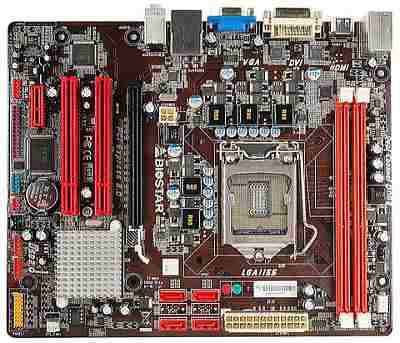

BIOSTAR H61MH Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 4 x USB 2.0 Port
  • 1 x HDMI Connector
  • 1 x DVI Connector
  • 1 x VGA Port
  • 1 x RJ-45 Port
  • 3 x Audio Connector
• Internal I/O Interface:
  • 1 x Printer Header
  • 2 x USB 2.0 Header
  • 4 x SATA2 3Gb/s Connector
  • 1 x Front Audio Header
  • 1 x Front Panel Header
  • 1 x S/PDIF-OUT Header
  • 1 x CPU FAN Header
  • 1 x System FAN Header
  • 1 x Serial Header
  • 1 x CIR Header

• USB Ports:
  • 4 x USB 2.0 Port
  • 2 x USB 2.0 Header

Motherboard Specifications

• Model:
  • BIOSTAR H61MH Motherboard

• CPU:
  • Intel ® Core i7 LGA 1155 Processor
  • Intel ® Core i5 LGA 1155 Processor
  • Intel ® Core i3 LGA 1155 Processor
  • Intel ® Pentium ® LGA 1155 Processor
  • Maximum CPU TDP (Thermal Design Power) : 95Watt
• Chipset:
  • Intel H61
• Memory:
  • Support Dual Channel DDR3 1066/1333/1600 MHz
  • 2 x DDR3 DIMM Memory Slot
  • Max. Supports up to 16GB Memory
• Expansion Slots:
  • 1 x PCI-E x16 3.0 Slot (supported by Core i5 -3xxx / Core i7 3xxx CPU)
  • 1 x PCI-E x1 2.0 Slot
  • 2 x PCI Slots
• On-Board Audio:
  • Realtek ALC662 6-Channel HD Audio
• On-Board Video:
  • VGA Port
  • DVI Port
  • HDMI Port
• Storage:
  • 4 x SATA2 Connector
• Special Features:
  • Supports BIO-Remote2
  • Supports BIO-Remote
  • Windows 7 Compatible
  • Supports Solid capacitor
  • Supports Charger Booster
  • Supports BIOS Online Update
• Accessories:
  • 2 x SATA Cable
  • 1 x I/O Shield
  • 1 x CD Driver
  • 1 x Quick Guide
• On-Board LAN:
  • Realtek RTL8111E - 10/100/1000 Controller
• OS SUPPORT:
  • Support Windows XP / Vista / 7
• Form Factor:
  • Micro ATX Form Factor
  • Dimension: 24.4cm x 20cm ( W x L ) (9.6 Inch x 7.9 Inch)
