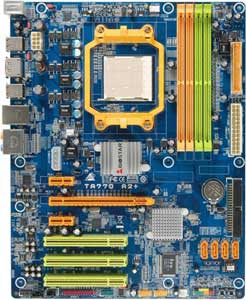

Biostar TA770A2+ Motherboard
Supports AMD Phenom FX / Phenom X4 / AMD Phenom X2 / Athlon 64 X2 Dual-Core / Athlon 64 FX / Athlon 64 / Sempron processor in the Socket AM2+, AMD 770 chipset, 1 x PCIe x16, 2 x PCIe x1, 3 x 32-bit 33MHz PCI, DDR2, LAN, USB, IDE, SATA2, RAID, eSATA, Audio, SPDIF, ATX Form Factor |
|
- Internal I/O Interface:
- 1 x Floppy connector
- 2 x USB 2.0/1.1 headers
- 1 x Serial Header
- 1 x LPT1 Header
- 1 x S/PDIF out header
- 4 x SATA2 ports
- 1 x IDE Port
- Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 2 x eSATA2 3Gb/s Connector
- 1 set 7.1 channel Audio Jack (6 jacks)
- 6 x USB 2.0/1.1 ports
- 1 x RJ 45 Port
- On-Board LAN:
- 1 x Marrvell 88E8056 - 10/100/1000 Controller
- Power Connector :
- 1 x 24pin main power
- 1 x 8 pin CPU power
|
Biostar TA770A2+ Motherboard
- Model:
- Biostar TA770A2+ Motherboard
- Processor Support:
- Supports AMD Phenom FX / Phenom X4 / Phenom X2 / Athlon 64 X2 Dual-Core / Athlon 64 FX / Athlon 64 / Sempron
- Supports AMD Cool'n'Quiet Technology
- Socket AM2+
- FSB:
- Chipset:
- Memory:
- Support Dual Channel DDR2 533/667/800/1066 MHz
- 4 x DDR2 DIMM Memory Slot
- Max. Supports up to 8GB Memory
- Expansion Slots:
- 1 x PCIe x16
- 2 x PCIe x1
- 3 x PCI 32bit/33MHz slots
- Storage:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 2 x eSATA Connector
- 4 x SATA2 3Gb/s
- Support SATA RAID: 0,1,10
- Audio:
- Realtek ALC888 8+2-Channel HD Audio
- 2/4/5.1/7.1
- Compliant with HD specification
- BIOS:
- Award BIOS with 4Mb Flash ROM
- Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
- Supports ACPI revision 1.0 specification
- Form Factor:
- ATX Form Factor
- 24.4cm X 30.5cm
|
