• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x COM Port
  • 1 x HDMI Connector
  • 1 x VGA Port
  • 1 x S-Video Connector
  • 1 set 7.1 channel Audio Jack (6 jacks)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • Realtek RTL8111B
  • 10/100/1000 Controller


• Power Connector :
  • 1 x 24pin main power
  • 1 x 4 pin CPU power

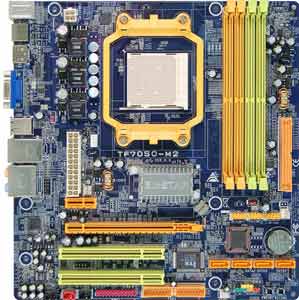

Biostar TF7050-M2 Motherboard

• Model:
  • Biostar TF7050-M2 Motherboard

• Processor Support:
  • Supports AMD Athlon 64 X2 Dual-Core / Athlon 64 FX / Athlon 64 / Sempron
  • Supports AMD Cool'n'Quiet Technology
  • Socket AM2


• FSB:
  • 2000 MTS


• Chipset:
  • nVidia GeForce 7050PV

• Memory:
  • Support Dual Channel DDR2 400/533/667/800 MHz
  • 4 x DDR2 DIMM Memory Slot
  • Max. Supports up to 4GB Memory


• Expansion Slots:
  • 1 x PCIe x16
  • 1 x PCIe x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 x SATA2 3Gb/s
  • Support RAID: 0,1, 0+1, 5


• Audio:
  • Realtek ALC888 8+2-Channel HD Audio
  • 2/4/5.1/7.1
  • Compliant with HD specification


• Video:
  • NVIDIA GeForce 7050PV GPU, On Board Graphic
  • Max. Memory Share Up to 512MB(Under OS By Turbo Cache)


• BIOS:
  • Award BIOS with 4Mb Flash ROM
  • Supports Plug and Play, STR/STD, Hardware monitor, Multi Boot, DMI
  • Supports ACPI revision 1.0 specification


• Form Factor:
  • Micro-ATX Form Factor
  • 24.4cm X 24.4cm
