• Internal I/O Interface:
  • 2 connectors for 4 additional external USB 2.0 ports
  • 1 connector for 1 external serial port
  • 1 front audio connector for line-out and mic-in jacks
  • 1 CD-in internal audio connecto
  • 1 S/PDIF-in/out connector
  • 1 connector for IrDA interface
  • 4 Serial ATA connectors
  • 2 40-pin IDE connectors
  • 1 floppy connector
  • 1 24-pin ATX power connector
  • 1 8-pin 12V power connector
  • 1 front panel connector
  • 2 fan connectors

• BIOS:
  • Award BIOS
  • 4Mbit flash memory

• Hardware Monitoring:
  • Monitors CPU temperature
  • Monitors the speed of the cooling fans
  • CPU Overheat Protection function monitors CPU temperature and fan during system boot-up - automatic shudown upon system overheat

• Manageability:
  • ACPI and OS Directed Power Management
  • ACPI STR (Suspend to RAM) function
  • Wake-On-PS/2 Keyboard/Mouse
  • Wake-On-USB Keyboard/Mouse
  • Wake-On-LAN
  • Wake-On-Ring
  • RTC timer to power-on the system
  • AC power failure recovery

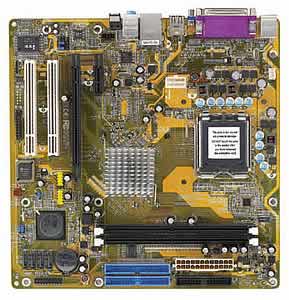

Motherboard Specifications

• Model:
  • DFI 662-TMG/G

• Processor Support:
  • Socket 775
  • Intel Core 2 Extreme/ Core 2 Duo/ Pentium D/ Pentium 4/ Celeron D Processor
  • Supports Intel Enhanced Memory 64 Technology (EMT64T)
  • Supports Enhanced Intel SpeedStep Technology (EIST)
  • Supports Intel Hyper-Threading Technology

• Chipset:
  • SiS 662 & 966

• FSB:
  • 1066/800/533MHz

• Memory:
  • 2x 240pin DDR2-667/533 DIMMs
  • Max capacity 2GB

• Expansion Slots:
  • 1x PCI-Express x16 slot
  • 1x PCI-Express x1 slot
  • 2x PCI slots

• On-Board Video:
  • Integrated Mirage 1 Graphics Controller
  • Microsoft DirectX 7.0 H/W and Microsoft DirectX 9.0 S/W compliant
  • Built-in a High performance 256 bit 3D Engine
  • MPEG I/II motion compensation decoder

• On-Board Audio:
  • Realtek ALC655 6-channel AC'97 Audio CODEC
  • 6-channel audio output
  • S/PDIF-in/out interface

• On-Board LAN:
  • SiS 196 Gigabit Ethernet Controller

• Storage:
  • 2x ATA-133 Channels
  • 4x SATA ports support RAID 0, RAID 1 and JBOD

• Rear Panel I/O Ports:
  • 1 mini-DIN-6 PS/2 mouse port
  • 1 mini-DIN-6 PS/2 keyboard port
  • 1 parallel port
  • 1 VGA port
  • 1 RJ45 LAN port
  • 4 USB 2.0/1.1 ports
  • Line-in, line-out and mic-in jacks
  • 1 optical S/PDIF port

• Form Factor:
  • microATX form factor
  • 24.4cm (9.6") x 24.4cm (9.6")
