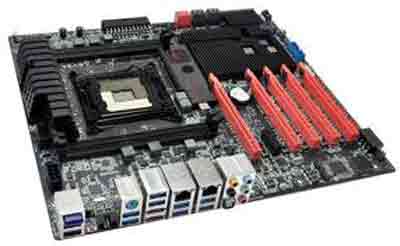

EVGA 151-SE-E777-KR Motherboard

• Storage:
  • SATA 3: 4 3 Gb/s Slot(s)
  • SATA 6 Gb/s Slots: 2 6 Gb/s Slot(s)
  • SATA RAID Supported: 0/1/5/10/JBOD
  • eSATA Slots Available: 2 x eSATA 3Gb/s

• Rear Panel I/O Ports:
  • 1 IEEE 1394 Slots
  • 1 PS/2 Connector(s)
  • 2 USB 2.0 Ports
  • 8 USB 3.0 Ports
  • 5 Audio Ports

• Special Features:

  • Intel X79 Express Chipset
  • 4 DIMM Quad-Channel DDR3 2133MHz+ (up to 32GB)
  • 8 Channel High Definition Audio + Optical
  • 100% POSCAP Capacitors
  • 12+2 Phase PWM
  • PCI Express 3.0 Ready
  • E-LEET Software Support
  • EVGA EVBot Support
  • Triple BIOS Support
  • EZ Voltage Read Points
  • Onboard CPU Temp Monitor
  • CLEAR CMOS, Power and Reset
  • Dual 8 Pin CPU Power
  • PCIE/DIMM Disable Switches

Motherboard Specifications

• Model:
  • EVGA 151-SE-E777-KR Motherboard


• Processor Support:
  • LGA 2011

• Chipset:
  • Intel X79

• Memory:
  • 4 x 240pin
  • Memory Standard Supported: DDR3 1066
  • DDR3 1333
  • DDR3 1600
  • DDR3 1800
  • DDR3 1866
  • DDR3 2133
  • Maximum Memory: 32 GB
  • Channels Supported: Quadruple Channel

• Expansion Slots:
  • 5 PCI-e x16 Slots

  • 1 PCI-e x1 Slot


• On-Board Audio:
  • Realtek ALC898
  • 8 Channels

• On-Board LAN:
  • Marvell 88E8059
  • Dual 10/100/1000Mbps

• Form Factor/Dimensions:
  • EATX Form Factor
  • 12"x10.375"
