• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x parallel (SPP/ECP/EPP)
  • 1 x serial port
  • 1 set 7.1 channel audio jacks (6 jacks)
  • 2 x S/PDIF (1 x coax out + 1 x optical out)
  • 4 x USB 2.0/1.1 ports
  • 1x IEEE1394 port
  • 1 x eSATA
  • 2 x RJ 45 Port


• Management:
  • STR (Suspend-to-RAM)
  • STD (Suspend-to-Disk)
  • SuperSpeed
  • SuperBoot
  • SuperBIOS-Protect
  • SuperRecovery
  • SuperUpdate
  • SuperStep
  • SuperLogo
  • Supports ATI CrossFire

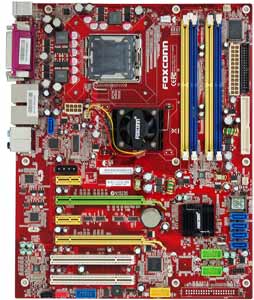

Foxconn 975X7AA-8EKRS2H Motherboard

• Model:
  • Foxconn 975X7AA-8EKRS2H Motherboard

• Processor Support:
  • Supports Intel ® Core2 Quad, Core2 Extreme, Core2 Duo, Pentium ® EE, Pentium ® D, Pentium ® 4, Celeron ® D processors
  • Socket LGA 775


• FSB:
  • 1066/800MHz


• Chipset:
  • Intel ® P975X

• Memory:
  • Four DDR2 DIMM memory slots (supports up to 8GB memory)
  • Supports 240 pins DDR2 DIMM 1.8 V
  • Supports DDR2 533/667 DIMM


• Expansion Slots:
  • 2 x PCIe x16(function as 2 x8 under ATI CrossFire)
  • 2 x PCIe x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 1 x ATA 133
  • 1 x ATA 100
  • 4x SATA2 ports 300 Mbps
  • Supports RAID 0, RAID 1, RAID 5, RAID 10,JBOD
  • Second SATA II/300 controller with 1 internal + 1 rear panel/external connectors, support RAID 0 and 1


• Audio:
  • 7.1 channel, high definition, Azalia (Realtek ALCALC883)
  • 2/4/5.1/7.1
  • Support for CD In


• On-Board LAN:
  • 2 x Gigabit Ethernet (10/100/1000) controllers, dual ports, PCIe (Marvell)


• Firewire:
  • 2 x 1394a; 1 x 6-pin in rear I/O area + 1 front via internal header


• BIOS:
  • AWARD BIOS
  • 1 x 4 Mbit flash
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b


• Form Factor:
  • ATX Form Factor
  • 12 x 9.6 inch
