• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 set 7.1 channel audio jacks (6 jacks)
  • 1x VGA Port
  • 1x Parallel port
  • 1x Serial Port
  • 6 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• Management:
  • STR (Suspend-to-RAM)
  • STD (Suspend-to-Disk)
  • SuperSpeed, SuperBoot
  • SuperBIOS-Protect
  • SuperRecovery, SuperUpdate
  • SuperStep, SuperLogo

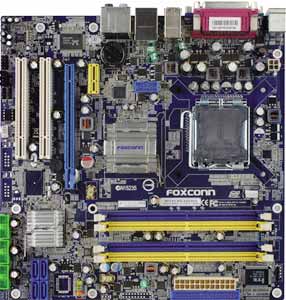

Foxconn G33M Motherboard

• Model:
  • Foxconn G33M Motherboard

• Processor Support:
  • Supports Intel® Core2 Quad, Core2 Extreme, Core2 Duo, Pentium® EE, Pentium® D, Pentium® 4, Celeron® D processors
  • Socket LGA 775


• FSB:
  • 1333/1066/800MHz


• Chipset:
  • Intel ® G33

• Memory:
  • Four DDR2 DIMM memory slots (supports up to 8GB memory)
  • Supports 240 pins DDR2 DIMM 1.8 V
  • Supports DDR2 667/800/1066 DIMM


• Expansion Slots:
  • 1 x PCIe x16
  • 1 x PCIe x1
  • 2 x PCI 32bit/33MHz slots


• Storage:
  • 1 x ATA 133
  • 4 x SATA2 ports 300 Mbps

• Audio:
  • 7.1 channel, high definition, Azalia (Realtek ALC888)
  • 2/4/5.1/7.1
  • Support for CD In


• On-Board LAN:
  • Realtek 8110SC Gigabit Ethernet Controller


• Video
  • Intel G33 Integrated Graphic Controller


• BIOS:
  • AWARD BIOS
  • 1 x 8 Mbit flash
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b


• Form Factor:
  • Micro-ATX Form Factor
  • 9.6 x 9.6 inch
