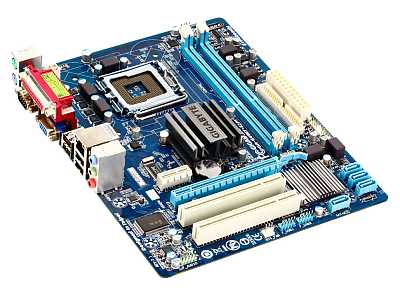

Gigabyte GA-G41MT-S2PT Motherboard

• Storage:
  • South Bridge:
    1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
    4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 1 x parallel port
  • 1 x serial port
  • 1 x D-Sub port
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks (Line In/Line Out/Microphone)

• Internal I/O Interface:
  • 1 x 24-pin ATX main power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x IDE connector
  • 4 x SATA 3Gb/s connectors
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x front panel header
  • 1 x front panel audio header
  • 2 x USB 2.0/1.1 headers
  • 1 x Clear CMOS jumper

• BIOS:
  • 2 x 8 Mbit flash
  • Use of licensed AWARD BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

• Special Features:
  • Support for @BIOS
  • Support for Q-Flash
  • Support for Xpress BIOS Rescue
  • Support for Download Center
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  • Support for Easy Energy Saver
    * Due to the hardware limitation, you must install the Intel ® Core 2 Extreme/Core 2 Quad/Core 2 Duo/Pentium Dual-Core/Celeron Dual-Core/Celeron 400 Series CPU to enable support for Easy Energy Saver.
  • Support for Smart Recovery
  • Support for ON/OFF Charge
  • Support for 3TB+ Unlock
  • Support for Q-Share

Motherboard Specifications

• Model:
  • Gigabyte GA-G41MT-S2PT Motherboard

• Processor Support:
  • Support for an Intel ® Core 2 Extreme processor/Intel ® Core 2 Quad processor/Intel ® Core 2 Duo processor/ Intel ® Pentium ® processor/Intel ® Celeron ® processor in the LGA775 package
  • L2 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
• Chipset:
  • North Bridge: Intel ® G41 Express Chipset
  • South Bridge: Intel ® ICH7

• FSB:
  • 1333/1066/800 MHz FSB

• Memory:
  • 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
    * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  • Dual channel memory architecture
  • Support for DDR3 1333 (O.C.)/1066/800 MHz memory modules
    (Please refer "Memory Support List" for more information.)

• Expansion Slots:
  • 1 x PCI Express x16 slot, running at x16
  • 1 x PCI Express x1 slot
  • 2 x PCI slots
• On-Board Video:
  • North Bridge:
  • 1 x D-Sub port

• On-Board Audio:
  • Realtek ALC887 audio codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

• On-Board LAN:
  • 1 x Atheros AR8151 chip (10/100/1000 Mbit)
• Hardware Monitoring:
  • System voltage detection
  • CPU temperature detection
  • CPU/System fan speed detection
  • CPU overheating warning
  • CPU/System fan fail warning
  • CPU fan speed control
    * Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.
• Form Factor/Dimension:
  • Micro ATX Form Factor
  • 24.4cm x 19.4cm (9.6 Inch x 7.6 Inch)
