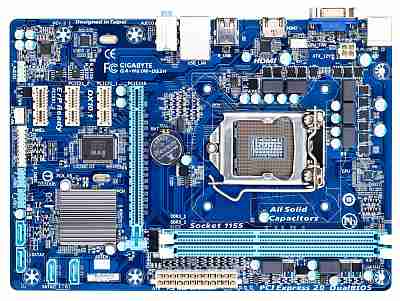

Gigabyte GA-H61M-DS2H Motherboard

• Storage:
  • Chipset:
    4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse port
  • 1 x D-Sub port
  • 1 x HDMI port
  • 6 x USB 2.0/1.1 ports
  • 1 x RJ-45 port
  • 3 x audio jacks (Line In/Line Out/Microphone)

• Internal I/O Interface:
  • 1 x 24-pin ATX main power connector
  • 1 x 4-pin ATX 12V power connector
  • 4 x SATA 3Gb/s connectors
  • 1 x CPU fan header
  • 1 x system fan header
  • 1 x front panel header
  • 1 x front panel audio header
  • 2 x USB 2.0/1.1 headers
  • 1 x Clear CMOS jumper

• Hardware Monitoring:
  • System voltage detection
  • CPU/System temperature detection
  • CPU/System fan speed detection
  • CPU overheating warning
  • CPU/System fan fail warning
  • CPU/System fan speed control
    * Whether the CPU/System fan speed control function is supported will depend on the CPU/System cooler you install.

• I/O Controller:
  • iTE I/O Controller Chip

• Bundle Software:
  • Norton Internet Security (OEM version)
  • Intel ® Rapid Start Technology
  • Intel ® Smart Connect Technology

• Operating System:
  • Support for Microsoft ® Windows 8/7/Vista/XP

Motherboard Specifications

• Model:
  • Gigabyte GA-H61M-DS2H Motherboard

• Processor Support:
  • Support for Intel ® Core i7 processors/Intel ® Core i5 processors/ Intel ® Core i3 processors/Intel ® Pentium ® processors/Intel ® Celeron ® processors in the LGA1155 package
  • L3 cache varies with CPU
    (Some Intel ® Core processors require a graphic card, please refer "CPU support List" for more information.)
• Chipset:
  • Intel ® H61 Express Chipset
• Memory:
  • 2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
    * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  • Dual channel memory architecture
  • Support for DDR3 1333/1066/800 MHz memory modules
  • Support for non-ECC memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
    * To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.
    (Please refer "Memory Support List" for more information.)

• Expansion Slots:
  • 1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
    * PCIE Gen.3 is dependent on CPU and expansion card compatibility.
  • 3 x PCI Express x1 slots
    (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
• On-Board Video:
  • Integrated Graphics Processor:
  • 1 x D-Sub port
  • 1 x HDMI port, supporting a maximum resolution of 1920x1200

• On-Board Audio:
  • Realtek ALC887 audio codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
• BIOS:
  • 2 x 32 Mbit flash
  • Use of licensed AMI EFI BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
• Special Features:
  • Support for @BIOS
  • Support for Q-Flash
  • Support for Xpress Recovery2
  • Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  • Support for ON/OFF Charge
• On-Board LAN:
  • 1 x Realtek 8111F chip (10/100/1000 Mbit)

• Form Factor:
  • Micro ATX Form Factor
  • 24.4cm x 17.4cm (9.6 Inch x 6.9 Inch)
