• Rear Panel I/O Ports:
  • 1 x PS/2 Keyboard
  • 1 X PS/2 Mouse
  • 1 x Parallel port
  • 1 x Serial port
  • 1 x S/PDIF Out connection (coaxial+optical)
  • 6 audio jacks (Line In / Line Out / MIC In/Surround Speaker Out (Rear Speaker Out)/Center/Subwoofer Speaker Out/Side Speaker Out)
  • 4 x USB 2.0/1.1 ports
  • 1 x RJ 45 Port


• On-Board LAN:
  • Realtek 8211B chip (10/100/1000 Mbit)


• Management:
  • System voltage detection
  • CPU/System temperature detection
  • CPU/System/Power fan speed detection
  • CPU overheating warning
  • CPU/System/Power fan fail warning
  • CPU fan speed control

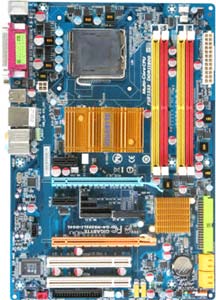

Gigabyte GA-N650SLI-DS4L Motherboard

• Model:
  • Gigabyte GA-N650SLI-DS4L Motherboard

• Processor Support:
  • Support for an Intel ® Core 2 Quad processor/Intel ® Core 2 Duo processor/ Intel ® Pentium ® processor Extreme Edition/Intel ® Pentium ® D processor/ Intel ® Pentium ® 4 processor Extreme Edition/Intel ® Pentium ® 4 processor/ Intel ® Celeron ® processor
  • Socket LGA 775


• FSB:
  • 1333/1066/800 MHZ


• Chipset:
  • NVIDIA® nForce 650i SLI

• Memory:
  • 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory
  • Support for DDR2 1066/800/667 MHz memory modules
  • Dual channel memory architecture


• Expansion Slots:
  • 2 PCI Express x16 slots
  • 2 x PCI-E x1
  • 2x PCI 32bit/33MHz slots
  • In SLI Mode, the two PCIE x16 slots can run at up to x8 respectively. In Normal Mode, only the first PCIE x 16 slot (PCIE_16_1) is available and can run at up to x16


• Storage:
  • 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
  • 4 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3,) supporting up to 4 SATA 3Gb/s devices
  • Support SATA RAID 0, 1, 0+1, 5


• Audio:
  • (Realtek ALC888 codec high definition
  • 2/4/5.1-channel
  • Support for S/PDIF Out


• BIOS:
  • AWARD BIOS
  • 1 x 4 Mbit flash
  • PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0


• Form Factor:
  • ATX Form Factor
  • 30.5cm x 21.0cm
