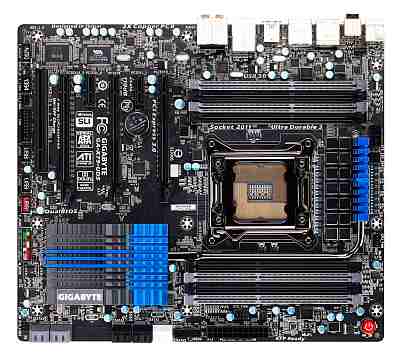

Gigabyte GA-X79-UD5 Motherboard

• Storage:
  • Chipset:
    2 x SATA 6Gb/s connectors (SATA3 0/SATA3 1) supporting up to 2 SATA 6Gb/s devices
    4 x SATA 3Gb/s connectors (SATA2 2~SATA2 5) supporting up to 4 SATA 3Gb/s devices
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
  • 3 x Marvell 88SE9172 chips:
    4 x SATA 6Gb/s connectors (GSATA3 6~GSATA3 9) supporting up to 4 SATA 6Gb/s devices
    2 x eSATA 6Gb/s connectors (including 1 eSATA/USB Combo) on the back panel supporting up to 2 SATA 6Gb/s devices
    Support for SATA RAID 0 and RAID 1

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard/mouse port
  • 1 x CPU overclocking button
  • 1 x BIOS switch button
  • 1 x Clear CMOS button
  • 1 x IEEE 1394 port
  • 7 x USB 2.0/1.1 ports
  • 2 x USB 3.0/2.0 ports
  • 1 x eSATA/USB Combo connector
  • 1 x eSATA 6Gb/s connector
  • 1 x RJ-45 port
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In/Mic In, Line Out)

• Internal I/O Interface:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 6 x SATA 6Gb/s connectors
  • 4 x SATA 3Gb/s connectors
  • 1 x CPU fan header
  • 4 x system fan headers
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x S/PDIF Out header
  • 3 x USB 2.0/1.1 headers
  • 1 x USB 3.0/2.0 header
  • 1 x IEEE 1394a header
  • 1 x Clear CMOS jumper
  • 1 x Trusted Platform Module (TPM) header

• Hardware Monitoring:
  • System voltage detection
  • CPU/System temperature detection
  • CPU/System fan speed detection
  • CPU overheating warning
  • CPU/System fan fail warning
  • CPU/System fan speed control
    * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

Motherboard Specifications

• Model:
  • Gigabyte GA-X79-UD5 Motherboard

• Processor Support:
  • Support for Intel ® Core i7 processors in the LGA2011 package
  • L3 cache varies with CPU
    (Please refer "CPU Support List" for more information.)
• Chipset:
  • Intel ® X79 Express Chipset
• Memory:
  • 8 x 1.5V DDR3 DIMM sockets supporting up to 64 GB of system memory
    * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  • 4 channel memory architecture
  • Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
  • Support for non-ECC memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)

• Expansion Slots:
  • 2 x PCI Express x16 slots, running at x16 (PCIEX16_1/PCIEX16_2)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2 slots.
  • 1 x PCI Express x16 slot, running at x8 (PCIEX8)
    (All PCI Express x16 slots conform to PCI Express 3.0 standard.)
  • 2 x PCI Express x1 slots
    (All PCI Express x1 slots conform to PCI Express 2.0 standard.)
  • 1 x PCI slot
• Video Support:
  • Support for 3-Way/2-Way AMD CrossFireX / NVIDIA SLI technology.

• On-Board Audio:
  • Realtek ALC898 codec
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for Dolby ® Home Theater
  • Support for S/PDIF Out

• On-Board LAN:
  • 1 x Intel GbE LAN (10/100/1000 Mbit)
• BIOS:
  • 2 x 64 Mbit flash
  • Use of licensed AMI EFI BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
• Special Features:
  • Support for @BIOS
  • Support for Q-Flash
  • Support for Xpress BIOS Rescue
  • Support for Download Center
  • Support for Xpress Install
  • Support for Xpress Recovery2
  • Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  • Support for Smart 6
  • Support for eXtreme Hard Drive (X.H.D)
  • Support for ON/OFF Charge
  • Support for Cloud OC
  • Support for TouchBIOS
  • Support for 3TB+ Unlock
  • Support for Q-Share
• Form Factor:
  • E-ATX Form Factor
  • 30.5cm x 26.4cm (12 Inch x 10 Inch)
