• Rear Panel I/O Ports:
  • 1 PS/2 Mouse
  • 1 Ps/2 Keyboard
  • 1 VGA port
  • 1 x Audio headers
  • 4x USB 2.0 Ports
  • 1 x RJ 45 Port


• Video:
  • Intel ® Graphics Media Accelerator 950 onboard graphics subsystem


• Management:
  • ACPI Power Management
  • Wake-On-LAN (WOL)
  • Power On LAN
  • AC Power Failure Recovery
  • Intel ® Server Management family of software

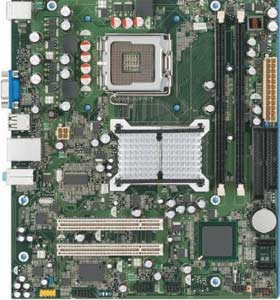

Intel D945GCPE Motherboard

• Model:
  • Intel D945GCPE Motherboard

• Processor Support:
  • Support Intel Core 2 Duo/ Pentium Dual-Core/ Pentium D/ Pentium 4/ Celeron 400 Series/ Celeron D Processor
  • Hyper-Threading Technology Support
  • Socket LGA775


• FSB:
  • 1066/800/533 MHz


• Chipset:
  • Intel ® 945GC

• Memory:
  • Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR2 667 MHz, DDR2 533 MHz and DDR2 400 MHz DIMMs (Non ECC)
  • Support for up to 2 GB of system memory


• Expansion Slots:
  • 2 PCI 32-bit/33 MHz


• Storage:
  • One channel supporting up to two IDE devices
  • Two SATA (3.0 Gb/s) ports


• Audio:
  • Intel ® High Definition Audio
  • Realtek* ALC662 audio codec


• On-Board LAN:
  • 10/100 Mbits/sec LAN subsystem using the RealTek RTL8101E-GR


• BIOS:
  • Intel ® BIOS (resident in the SPI Flash device)
  • Support for Advanced Configuration and Power Interface (ACPI), Plug and Play,and SMBIOS


• Form Factor:
  • MicroATX, 9.6 x 8.6 (24.38 cm x 21.84 cm)
