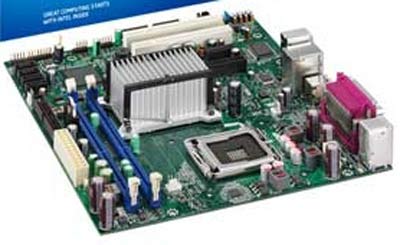

Intel DG41TY Motherboard

• Storage:
  • 4 SATA Ports

• Rear Panel I/O Ports:
  • Legacy I/O controller for diskette drive, serial header, parallel and PS/2* ports
  • 8 USB 2.0 ports

  • One serial port header
  • Four Serial ATA IDE interfaces
  • One Parallel ATA IDE interface with UDMA 33, ATA-66/100 support
  • One diskette drive interface
  • PS/2 keyboard and mouse ports
  • Audio (back channel + front channel): 6-ch


• Special Features:
  • Microsoft Windows Vista* Premium Ready: With a PC built with Intel ® Core2 Duo processors or Intel ® Core2 Quad processors, and the Intel ® Desktop Board, you can experience a more responsive and manageable environment of Microsoft Windows Vista* which supports superior Windows Aero* interface.
  • Intel ® HD Audio Technology: YES


Motherboard Specifications

• Model:
  • Intel DG41TY Motherboard


• Processor Support:
  • Intel ® Core2 Quad processor (95 W TDP) in an LGA775 socket
  • Intel ® Core2 Duo processor in an LGA775 socket
  • Intel ® Pentium ® processor in an LGA775 socket
  • Intel ® Celeron ® processor or Intel ® Celeron ® processor 400 sequence in an LGA775 socket

• Chipset:

  • Intel ® G41 Express Chipset

• Memory:
  • Two 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR2 800/667 MHz DIMMs
  • Support for up to 8 GBς  of system memory
  • Memory Channels: 2


• Expansion Slots:
  • One PCI Express* x16 bus add-in card connector
  • One PCI Express* x1 bus add-in card connectors
  • Two PCI Conventional* bus connectors

• On-Board Video:
  • Intel ® Graphics Media Accelerator X4500 integrated graphics subsystem
  • GraphicsOutput: DVI-D/VGA

  • Integrated Graphics: YES
  • Dual Display Capable: YES


• On-Board Audio:
  • Intel ® High Definition Audio subsystem in the following configuration: 6-channel (5.1) audio subsystem using the Realtek* ALC888VC audio codec

• On-Board LAN:
  • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Realtek* RTL 8111D

• Form Factor/Dimensions:
  • microATX (9.60 inches by 8.60 inches)
