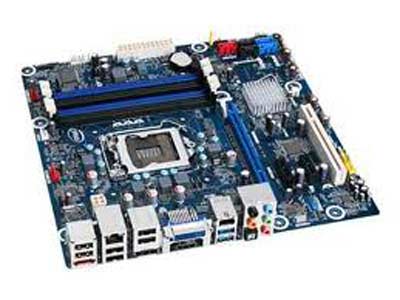

Intel DH67GD Motherboard

• Storage:
  • 2 SATA 6.0 Gb/s
  • 3 SATA 3.0 Gb/s
  • 1 e-SATA 3.0 Gb/s


• Rear Panel I/O Ports:
  • Two Serial ATA 6.0 Gb/s ports; three Serial ATA 3.0 Gb/s ports, with one port compatible with eSATA extension; one eSATA 3.0 Gb/s port
  • Two USB 3.0 ports; fourteen USB 2.0 ports, six back panel ports, and eight additional ports via four internal headers
  • Two IEEE 1394a ports, one back panel port, and one via internal header
  • Audio (back channel + front channel: 8+2
  • S/PDIF Out Connector: 1
  • Consumer Infrared Headers: YES

• BIOS:
  • ID String: BLH6710H.86A

• Special Features:
  • Firewire: 1+1
  • Intel ® HD Audio Technology: YES
  • Intel ® Rapid Storage Technology: YES


Motherboard Specifications

• Model:
  • Intel DH67GD Motherboard


• Processor Support:
  • Intel ® Core i7 processor series in an LGA1155 socket
  • Intel ® Core i5 processor series in an LGA1155 socket
  • Intel ® Core i3 processor series in an LGA1155 socket

• Chipset:

  • Intel ® H67 Express Chipset

  • Intel ® Rapid Storage Technology (Intel ® RST) for RAID 0, 1, 5, and 10


• Memory:
  • Four 240-pin, DDR3 SDRAM Dual Inline Memory Module (DIMM) sockets
  • Support for DDR3 1333 / 1066 MHz DIMMs
  • Support up to 32 GB of system memory
  • Memory Channels: 2


• Expansion Slots:
  • One PCI Express* 2.0 x 16 discrete graphics card connector
  • Two PCI Express 2.0 x 1 connectors
  • One PCI Conventional bus connector

• On-Board Video:
  • DVI-I, HDMI*, and DisplayPort* connectors for processors with Intel ® HD Graphics
  • Integrated Graphics: YES
  • Graphics Output: HDMI DP DVI-I
  • Intel ® Clear Video Technology: YES
  • Dual Display Capable: YES
  • Requires a Processor with Intel Graphics Technology: YES


• On-Board Audio:
  • Intel ® High Definition Audio (Intel ® HD Audio) subsystem in the following configuration: 10-channel (7.1+ 2 independent multi-streaming) audio subsystem using the Realtek* ALC892 audio codec
  • Five analog audio ports and one optical S/PDIF out port
  • Internal S/PDIF header and front panel audio header

• On-Board LAN:
  • Gigabit (10/100/1000 Mb/s) LAN subsystem using the Intel ® 82579V Gigabit Ethernet Controller

• Form Factor/Dimensions:
  • MicroATX
  • 9.6" x 9.6"
