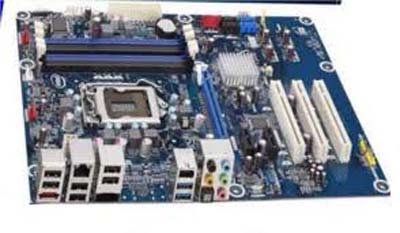

Intel DP67BA Motherboard

• Storage:
  • 2 SATA 6.0 Gb/s
  • 3 SATA 3.0 Gb/s
  • 1 e-SATA
  • Raid Configuration: 0,1,5,10

• Rear Panel I/O Ports:
  • Two Serial ATA 6.0 Gb/s ports
  • Three Serial ATA 3.0 Gb/s ports, with one port compatible with eSATA extension
  • One eSATA 3.0 Gb/s port
  • Two USB 3.0 ports
  • Fourteen USB 2.0 ports, six back panel ports, and eight additional ports via four internal headers
  • Two IEEE 1394a ports (one external and one internal header)
  • Audio (back channel + front channel): 8+2
  • Consumer Infrared Headers: YES
  • S/PDIF Out Connector: 1


• BIOS:
  • ID String: BAP6710H.86A

• Special Features:
  • Intel ® HD Audio Technology: YES
  • Intel ® Rapid Storage Technology: YES


Motherboard Specifications

• Model:
  • Intel DP67BA Motherboard


• Processor Support:
  • Intel ® Core i7-2000 processor series in an LGA1155 socket
  • Intel ® Core i5-2000 processor series in an LGA1155 socket
  • Intel ® Core i3-2000 processor series in an LGA1155 socket

• Chipset:

  • Intel ® P67 Express Chipset

  • Intel ® Rapid Storage Technology for RAID 0,1,5, and 10

• Memory:
  • Four 240-pin DDR3 SDRAM Dual Inline Memory Module (DIMM) socket
  • Support for DDR3 1333 / 1066 MHz DIMMs
  • Support for up to 32 GB of system memory
  • Memory Channels: 2


• Expansion Slots:
  • One PCI Express* 2.0 x 16 bus add-in card connector
  • Three PCI Conventional bus connectors
  • Two PCI Express 2.0 x 1 connectors

• On-Board Video:
  • Discrete graphics support for PCI Express 2.0 x16 add-in graphics card

• On-Board Audio:
  • Intel ® High Definition Audio subsystem in the following configuration: 10-channel (7.1+ 2 independent multi-streaming) audio subsystem with three analog audio outputs using the Realtek* ALC888 audio codec
  • Five analog audio ports and one optical S/PDIF out port
  • Internal S/PDIF header and front panel audio header

• On-Board LAN:
  • Gigabit (10/100/1000 Mbits/sec) LAN subsystem using the Intel ® 8259V Gigabit Ethernet Controller

• Form Factor/Dimensions:
  • ATX
  • 12" x 9.6"
