Intel S845WD1-E

Part # 110295

Condition : Refurbished

| Warranty: 90 days

Brand : Intel

| Log in to add review

Rate this product:

Quantity: Out of Stock

Click "Notify" to get an alert when it's available

Intel S845WD1-E socket 478 Motherboard SSI MEB form factor

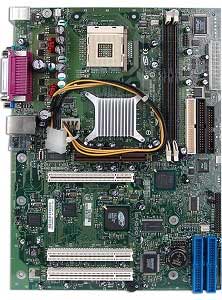

Intel S845WD1-E Motherboard

Support Intel ® Pentium ® 4 processor/ Celeron ® Processor in Socket 478, Intel ® 845E chipset, 1 AGP x4, 3 PCI 32 bits, DDR, Dual LAN, USB, IDE, RAID, Video, SSI Form Factor

Intel S845WD1-E Motherboard, Support Intel ® Pentium ® 4 processor/ Celeron ® Processor in Socket 478, Intel ® 845E chipset, 1 AGP x4, 3 PCI 32 bits, DDR, Dual LAN, USB, IDE, RAID, Video, SSI Form Factor

Internal I/O Interface:
- 2 x USB headers ( total 4 )
- 1 x Serial header
- 1 x Floppy connector
- 2 x IDE Port

Rear Panel I/O Ports:
- 1 x PS/2 Keyboard
- 1 X PS/2 Mouse
- 1 X VGA connector
- 1 x Parallel
- 1 x COM port
- 2 x USB Ports
- 2 x RJ 45 Port
Management:
- Wake on PME
- Wake-On-LAN (WOL)
- Wake on Ring (WOR)

Intel S845WD1-E Motherboard

Model:
- Intel S845WD1-E Motherboard

Processor Support:
- Support Intel Pentium 4/ Celeron Series Processor
- Socket 478
FSB:
- 400/533MHz
Chipset:
- Intel ® 845E chipset

Memory:
- Support for single-sided or double-sided DIMMs (DDR 200 and DDR 266) providing up to 2 GB system memory with two 184-pin DDR SDRAM Dual Inline Memory Module (DIMM) sockets
Expansion Slots:
- 1 AGP 4x
- 3 PCI 32-bit/33 MHz
Storage:
- ATA-100 controller, Promise Technology PDC20267
- Two Ultra DMA 33 / ATA 66/100 connectors
- RAID 1, 0, 0+1
Video:
- ATI Rage* XL Video Controller with 8 MB of SDRAM
On-Board LAN:
- Two Intel10/100 82550PM Fast Ethernet Controllers
BIOS:
- AMI BIOS
- Advanced Configuration and Power Interface (ACPI)
- Plug and Play
- SMBIOS
Form Factor:
- SSI-compliant
- 8.59 in.x 12.02 in.
