Microstar / MSI 661FM2-LSR

Microstar / MSI 661FM2-LSR

Part # 108596

Condition : New- Retail Box

| Warranty: 365 days

Brand : Microstar / MSI
| Log in to add review

Rate this product:


Loading...

Click "Notify" to get an alert when it's available

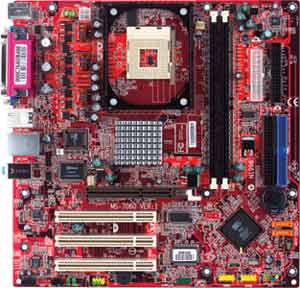

MSI 661FM2-LSR Motherboard

MSI 661FM2-LSR Motherboard

Socket 478 for Intel Pentium 4, 661FX chipset, 2 DIMM, SATA, On-board Audio, Video, LAN, USB. MicroATX form factor.


Socket 478 for Intel Pentium 4, 661FX chipset, 2 DIMM, SATA, On-board Audio, Video, LAN, USB. MicroATX form factor.

  • Internal I/O Interface:
    • 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
    • 1 serial ports (COM A)
    • 1 parallel port supports SPP/EPP/ECP mode.
    • 8 USB ports (2.0/1.1) (Rear x 4/ Front x 4).
    • 1 RJ-45 LAN jack
    • 1 Line-In/Line-Out/Mic-In port
    • 1 VGA port

  • Storage:
    • Dual IDE controllers integrated in SiS ® 964
    • Support P/O, Bus Master, Ultra DMA66/100/133 operation
    • Can connect up to four IDE devices.
    • Supports 2 Serial ATA 150 ports w/ RAID 0, RAID 1
  • BIOS:
    • 4Mb Award BIOS with PnP, ACPI, SMBIOS 2.3, Green and Boot Block.
    • Provides DMI2.0, WfM2.0, WOL, WOR, chassis intrusion, and SMBus forsystem management
  • Form Factor:
    • 9.6" x 9.3"
    • MicroATX Form Factor



MSI 661FM2-LSR Specifications

  • Model:
    • MSI 661FM2-LSR
  • Processor Support:
    • Socket 478 for Intel ® P4 processors with FSB 400/533/800 MHz
    • Supports up to 3.4GHz
    • Supports Hyper-Threading Technology
  • Chipset:
    • SIS ® 661FX Chipset
    • SIS ® 964 MuTIOL Media I/O Chipset
  • Memory:
    • Supports two memory banks using two 184-pin unbuffered DDR266/333/400 DIMM.
    • Supports up to 2GB memory size without ECC.

  • Expansion Slots:
    • One AGP (Accelerated Graphics Port) 4X/8X slot.
    • Three PCI 2.2 32-bit PCI bus slots (support 3.3V/5V PCI bus interface).

  • On-Board Audio:
    • AC'97 link controller integrated in SiS ® 964
    • 6 channels software audio codec RealTek ALC655
  • On-Board Video:
    • Built-in Real 256 bit 2D/3D graphics engine upto 128MB with total system memory 256MB or above

  • On-Board LAN:
    • SiS 964 integrated MAC + Realtek 8201BL PHY
