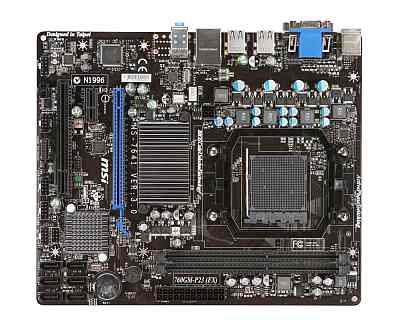

MSI 760GM-P23 (FX) Motherboard

• Rear Panel I/O Ports:
  • 1 x PS/2 mouse port
  • 1 x PS/2 keyboard port
  • 6 x USB 2.0 ports
  • 1 x Graphic Card port
  • 1 x DVI-D port
  • 1 x RJ45 LAN jack
  • 1 x 3 in 1 audio jack
• Internal I/O Interface:
  • 1 x ATX 24-pin power connector
  • 1 x ATX 4-pin 12V CPU power connector
  • CPU x 1 / System x 1 FAN connectors
  • 1 x Front panel audio connector
  • 1 x Front panel connector
  • 1 x Chassis intrusion switch connector
  • 2 x USB 2.0 connectors
  • 6 x Serial ATA II connectors
  • 1 x Serial port connector
  • 1 x Clear CMOS jumper
  • 1 x SPDIF-out connector
  • 1 x TPM module connector

Motherboard Specifications

• Model:
  • MSI 760GM-P23 (FX) Motherboard

• CPU:
  • 64bit AMD ® FX, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron CPU.
    Please refer to CPU Support for compatible CPU; the above description is for reference only.
• Chipset:
  • AMD ® 760G and SB710 Chipset

• Hyper Transport Bus:
  • HyperTransport 3.0 supporting speed up to 5200MT/s
• Memory:
  • Supports two unbuffered DIMM of 1.5 Volt DDR3 800/1066/1333 DRAM, 16GB Max
• Expansion Slots:
  • 1 PCI Express x16 slot with x16 operation (PCI Express Bus SPEC V2.0 compliant)
  • 1 PCI EXpress x1 slot
  • 1 PCI slot, support 3.3V/ 5V PCI bus Interface.
• On-Board Audio:
  • Chipset integrated by Realtek ® ALC887
  • Flexible 7.1-channel audio with jack sensing
  • Compliant with Azalia 1.0 Spec
• On-Board Video:
  • VGA Port
  • DVI-D Port
    *VGA, DVI-D ports can only work with CPUs with GPUs core inside.

• Storage:
  • 6 SATA 3Gb/s (1~6) ports by AMD ® SB710
    Supports storage and data transfers at up to 3Gb/s
  • RAID Function
    SATA 1~6 support RAID 0, 1, 10 or JBOD mode by AMD ® SB710
• On-Board LAN:
  • Realtek PCI-E GbLAN controller RTL8111E
  • Supports 10Mb/s, 100Mb/s and 1000Mb/s
  • Compliance with PCI-Express Bus specification v1.0a
• Mounting:
  • .6 mounting holes.
• Form Factor:
  • 24.4cm(L) x 20.5cm(W) (9.6 Inch x 8.0 Inch)
  • Micro-ATX Form Factor
