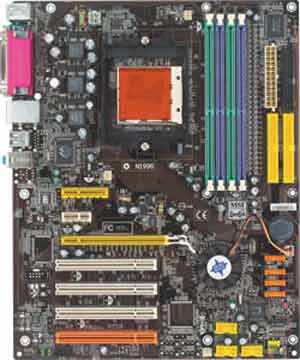

MSI K8N Neo4-F Motherboard
Socket 939 for AMD Athlon 64FX/64,
nVIDIA nForce 4 chipset, 1 PCI Expess 16x, 1 PCI Express 4x, 1 PCI
Express 1x, 4 PCI, 4 DIMM, On-board Audio, LAN, USB, SATA, RAID. ATX
form factor. |
|
- Internal I/O Interface:
- 1 floppy port supports 1 FDD
with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
- 1 serial port
- 1 parallel port supports SPP/EPP/ECP
mode
- 1 audio jack (5-in-1),
coaxial/fibre SPDIF out
- 10 USB 2.0 ports (Rear x 4 /
Front x 6)
- 1 RJ45 LAN jack
- Storage:
- An IDE controller on the
nVIDIA nForce4 chipset provides IDE HDD/CD-ROM with PIO, Bus
Master and Ultra DMA133/100/66 operation modes.
- Can connect up to 4 IDE
devices
- NV RAID supports 4 SATA ports
(SATA1-4). Transfer rate is up to 150MB/s.
- NV RAID (Software)
- Supports up to 4 SATA plus 2
ATA 133 Hard drives
- RAID 0 or 1, 0+1, JBOD is
supported
- RAID function work w/ ATA 133
+ SATA H/D or 2 SATA H/D
- BIOS:
- The mainboard BIOS provides "Plug &
Play" BIOS which detects the peripheral devices and expansion cards of
the board automatically.
- The mainboard provides a Desktop
Management Interface (DMI) function which records your mainboard
specifications.
- Supports boot from LAN, USB Device 1.1
& 2.0 and SATA HDD
- Form Factor:
- 11.96 in (L) x 9.61 in(W)
- ATX Form Factor
|
MSI K8N Neo4-F
Specifications
- Processor Support:
- Supports 64-bit AMD ® Athlon
64FX/64 processor (Socket 939)
- Supports 3000+, 3200+, 3500+,
3800+, 4000+, FX53 and FX55
- Chipset:
- Memory:
- Supports dual channel DDR
266/333/400, using four 184-pin DDR DIMMs.
- Supports the memory size up to 4GB
- Supports 2.5v DDR SDRAM DIMM
- Expansion Slots:
- One PCI Express X16 slot (supports
PCI Express Bus specification v1.0a compliant)
- One PCI Express X4 slot (supports
PCI Express Bus specification v1.0a compliant)
- One PCI Express X1 slot (supports
PCI Express Bus specification v1.0a compliant)
- Four 32-bit Master PCI Bus slots,
one orange slot reserves as communication slot.
- Support 3.3V/5V PCI bus Interface
- On-Board Audio:
- 7.1 channel audio codec RealTek
ALC850
- Compliance with AC97 v2.3 Spec.
- Meet PC2001 audio performance
requirement
- On-Board LAN:
- Suppor LAN jacks
- 1 LAN supports 10/100/1000 Fast
Ethernet by Marvell 88E1111 PHY
|
