• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x PS/2 Mouse
  • 1 VGA port
  • 1 DVI
  • 4 x USB 2.0 Ports
  • 1 x RJ 45 Port
  • 1 6-in-1 audio jack (S/SPDIF out)


• Video:
  • nVidia GeForce 7100 Graphics Controller


• Audio:
  • High Definition 7.1 Azalia Audio
  • Audio codec Realtek 888
  • Compliance with Azalia 1.0 spec
  • Flexible 7.1 Ch. audio with jack sensing


• Form Factor:
  • Micro-ATX Form Factor 9.60 in.(L) x 9.06 in.(W)

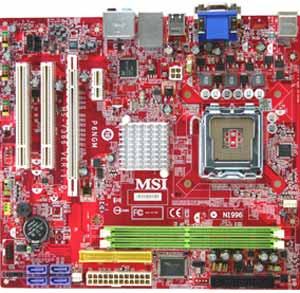

MSI P6NGM-FD Motherboard

• Model:
  • MSI P6NGM-FD Motherboard

• Processor Support:
  • Supports Socket 775 for Intel Core2 Quad, Core2 Duo, Pentium 4 (Prescott, P4EE), Pentium D, Pentium XE processors in LGA 775 package
  • Supoprts Intel 05B/05A and 04B/04A processors
  • Supports Intel Hyper-Threading technology
  • Supports EIST techonology
  • Supports Intel Quad Core Technology to 1333MHz and up


• FSB:
  • 533/800/1066/1333 MHz


• Chipset:
  • NVIDIA GeForce7100

• Memory:
  • Supports 2 unbuffered DIMM of 1.8 Volt DDR2 SDRAM
  • Supports up to 4GB memory size
  • Support Dual Channel DDR2 533/667/800MHz


• Expansion Slots:
  • One PCI Express X 16 slot
  • One PCI Express X 1 slot
  • Two PCI slots (support 3.3v/5v PCI bus interface).

• On-Board LAN:
  • Realtek RTL8211BL PCI-Express Gb LAN controller
  • Support 10/100/1000 Mb/s


• Storage:
  • Ultra DMA 133 (ATA-133) IDE controller
  • Supports PIO, Bus Master operation modes
  • One ATA-133 port supports up to 2 ATA drives
  • Serial ATAII controller
  • Transfer rate is up to 300MB/s
  • Can connect up to 4 Serial ATAII drives Raid (0, 1, 0+1, 5 & JBOD)


• BIOS:
  • The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  • The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.
