• Storage:
  • 2x ATA-133 channel
  • 2x SATA2 ports

• Rear Panel I/O Ports:
  • 1 x PS/2 keyboard
  • 1 x Parallel Port
  • 1 x VGA port
  • 4 x USB 2.0 Ports
  • 1 x Audio I/O (Line-in, Line-out and Mic-in)
  • 1 x PS/2 mouse
  • 1 x Serial Port
  • 1 x RJ 45 Port

• Internal I/O Interface:
  • 24-pin ATX Power Supply connector
  • 2 x USB 2.0 header support additional 4 USB2.0 ports
  • 1 x Front panel switch/LED header
    CPU / SYS FAN headers
  • 1 x Speaker header
  • 1 x Floppy connector-support 360K~2.88M Byte, 3 Mode FDDs or LS120
  • 4-pin ATX 12V power supply connector
  • 2 x Serial ATA connectors
  • 1 x Front panel audio header
  • 1 x IrDA for SIR header
  • 1 x CD in header

• BIOS:
  • Award 4Mb Flash ROM
  • Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
  • Full support for ACPI revision 1.0 specification

Motherboard Specifications

• Model:

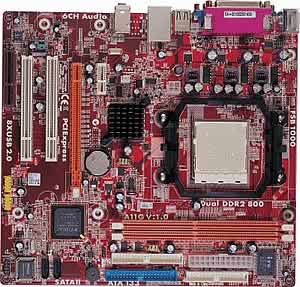

  • PC CHIPS A11G (V1.0)

• Processor Support:
  • Socket AM2
  • Support AMD Athlon 64 FX/ Athlon 64 x2 Dual-core/ Athlon 64/ Sempron processor

• Chipset:
  • nVidia GeForce 6100 & nForce 410 MCP

• FSB:
  • 1000 MHz

• Memory:
  • 2x 240pin DIMMs
  • Support Dual Channel DDR2 800/667/533/400 Memory
  • Max capacity 16GB

• Expansion Slots:
  • 1x PCI Express x16 slot
  • 1x PCI Express x1 slot
  • 2x PCI slots
  • 1x CNR slot

• On-Board Video:
  • Embedded GeForce 6100-based with 128MB share memory

• On-Board Audio:
  • Realtek ALC655 6-channel AC'97 Audio CODEC

• On-Board LAN:
  • Boardcom AC131 10/100Mbps Fast Ethernet PHY

• Form Factor:
  • Micro ATX Form Factor
  • 9.6" x 9.6"
