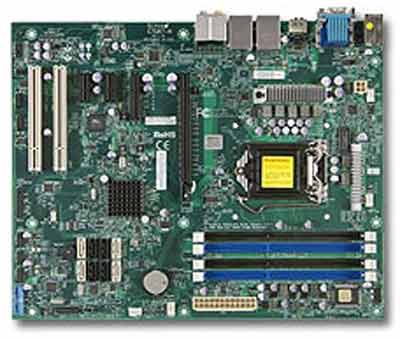

Supermicro C7Q67-H
Motherboard
- Storage:
- SATA 2.0 3Gbps with RAID 0, 1
- SATA 3.0 6Gbps with RAID 0, 1, 5, 10
- Rear Panel I/O Ports:
- Super I/O: Nuvoton NCT6776F
- 2x SATA 3.0 ports (6Gbps)
- 4x SATA 2.0 ports (3Gbps)
- 2x RJ45 LAN ports
- 2x USB 3.0 ports (via header)
- 12x USB 2.0 ports (6 rear, 6 ports via header)
- S/PDIF I/O headers
- 1x VGA port, 1x HDMI 1.4 ports
- DOM power connector support
- 4 Fast UART 16550 serial ports (Three header and one
rear
port)
- PS/2 keyboard/mouse shared connector
- TPM 1.2 header
- Hardware Monitoring:
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V
Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
- 5-Phase-switching voltage regulator with auto-sense
from 0.8375V-1.60V
- FAN: Total of 4 fan headers supporting up to 4 fans;
four 4-pin fan headers
- 4x fans with tachometer status monitoring
- Status monitor for speed control
- Status monitor for on/off control
- Support 3-pin fans (w/o speed control)
- Low noise fan speed control
- Pulse Width Modulated (PWM) fan connectors
- Temperature: Monitoring for CPU and chassis environment
- CPU thermal trip support
- FC temperature sensing logic
- Thermal Monitor 2 (TM2) support
- PECI
- CPU / System Overheat LED
- +5V Standby alert LED
- Chassis intrusion detection
- Chassis intrusion header
|
Motherboard Specifications
- Model:
- Supermicro C7Q67-H Motherboard
- Processor Support:
- Socket H2 (LGA 1155)
- Intel ® 2nd Generation Core i3/i5/i7, Pentium and
Celeron processor
- Chipset:
- Intel ® Q67 Express chipset
- Memory:
- 4x 240-pin DDR3 DIMM sockets
- Supports up to 32 GB DDR3 non-ECC Un-Buffered memory
(UDIMM)
- 1333/1066MHz
- Support non-ECC DDR3 UDIMM only
- 1333/1066/800MHz non-ECC DDR3 SDRAM 72-bit, 240-pin
gold-plated DIMMs
- 8GB, 4GB, 2GB, 1GB
- 1.5 V
- Expansion Slots:
- 1 (x16) PCI-E 2.0 slot
- 1 (x4) PCI-E 2.0 slot
- 2 (x1) PCI-E slots
- On-Board Audio:
- REALTEK ALC889 7.1 HD Audio
- On-Board LAN:
- Intel ® 82579LM and 82574L, 2x Gigabit Ethernet LAN ports
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45
output
- Form
Factor/Dimensions:
- ATX
- 9.6" x 12" (24.38cm x 30.48cm)
- Manageability:
- AMT 7.0 and vPro7.0
- Power Configurations: ACPI / ACPM Power Management
- Main Switch Override Mechanism
- Wake-On-LAN (WOL) header
- Keyboard Wakeup from Soft-Off
- Power-on mode for AC power recovery
- Internal/External modem ring-on
- BIOS:
- 64Mb SPI Flash EEPROM with AMI BIOS
- Features: Plug and Play (PnP)
- DMI 2.3
- PCI 2.3
- ACPI 1.0 / 2.0
- USB Keyboard support
- RTC (Real time Clock) Wakeup
|
