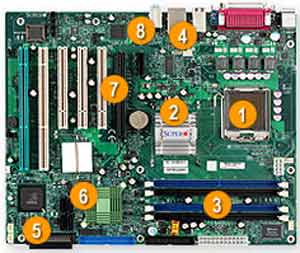

Supermicro PDSG4 Motherboard
Socket 775 for Intel Pentium 4/D,
Intel 955X chipset, RAID, SATA, IDE, SCSI, AUDIO, LAN, USB, 4 DIMM, 1
PCI Express 16x, 1 PCI Express 1x, 2 PCI-X, 3 PCI Support. |
|
- Internal I/O Interface:
- Intel ® ICH7R SATA (3 Gbps)
controller built-in
- Host RAID 0, 1, 5, and 10
support
- SCSI Adaptec AIC-7901
Controller
- Single-Channel Ultra320 SCSI
- Host RAID 0, 1, 10, JBOD
support
- RAID Support for Supermicro
All-In-One ZCR Card: AOC-LPZCR1 or
- Support for Zero-Channel RAID
with Adaptec 2010S/2020S ZCR
- Storage/RAID:
- Four Serial ATA ports (3Gbps
performance)
- Four SATA hard drives
supported
- One EIDE channel supports up
to two UDMA IDE devices
- Supports UDMA Mode 5, PIO Mode
4, and ATA/100
- 1 Floppy controller; 1.44 MB,
2.88 MB, 3-mode support
- BIOS:
- 8Mb Flash EEPROM with AwardBIOS ®
- User Over-Clock in System BIOS
- Plug and Play (PnP)
- APM 1.2
- DMI 2.3 support
- PCI 2.2
- ACPI 1.0
- BIOS rescue hot keys
- USB Keyboard support
- On-Board Audio:
- AC'97 audio CODEC with high quality
6-channel sound
- Rear Panel I/O Ports:
- 1x RJ45 LAN port
- 8x USB 2.0 compliant / 1.1
compatible (6x ports + 2x headers)
- 2 in front (FUCI), 6 in rear
- 1x Line In / Line Out / Microphone
ports
- Front Panel Header
- PS/2 keyboard and mouse ports
- 1x Fast UART 16550 serial port
- 1x Serial Header
- 1x ECP/EEP Parallel Port
|
PDSG4
Specifications
- Processor Support:
- Single LGA775 ZIF Socket
- Supports an Intel ® Pentium ® D
(Dual Core) processor
- Supports an Intel ® Pentium ®
Extreme Edition processor
- Supports an Intel ® Pentium ® 4
processor
- Supports an Intel ® Pentium ® 4
Extreme Edition processor
- Supports an Intel ® Celeron ® D
processor with 256KB L2 Cache
- Hyper-Threading (HT) capable
- Chipset:
- FSB:
- 1066 / 800 / 533 MHz system bus
- Memory:
- Four 240-pin DIMM sockets
- Supports up to 8 GB of unbuffered,
ECC DDRII 667/533/400MHz memory (Single / Dual Channel)
- DDRII 667/533/400MHz unbuffered,
ECC SDRAM, 240-pin gold-plated DIMMs
- Expansion Slots:
- 1 (x16) PCI-e slot (intended for
Graphics applications)
- 1 (x1) PCI-e slot
- 2x 64-bit 100MHz PCI-X slots
- 32-bit 33MHz PCI (5V) slots
- On-Board LAN:
- Single-port Intel ® 82573V Gigabit
PCI-Express Ethernet (Tekoa)
- Supports 10BASE-T,
100/1000BASE-TX, RJ45 output
- Form Factor:
- ATX
- 12" x 9.6", (30.5cm x 24.4cm)
- Manageability:
- Monitors for CPU Cores, +1.5V,
+3.3V, +5V, ±12V, +3.3V/+5V Standby, VBAT
- CPU Core 4-Phase-switching voltage
regulator with auto-sense from 0.8375V-1.6000V
- Adjustable CPU clock frequency
ratio settings (via BIOS)
- Total of five 4-pin fan headers
- 5x fans with tachometer monitoring
- Status monitor with firmware /
software speed control
- Support 4-pin PWM fans (with speed
control)
- Temperature Monitoring for CPU and
chassis environment
- CPU thermal trip support
- Thermal Monitor (TM2) Support
- CPU / System Overheat LED
- +5V standby alert LED
- Suspend-state indicator LED
- Chassis intrusion detection
- Chassis intrusion header
- Lead Free (not 100%)
|
