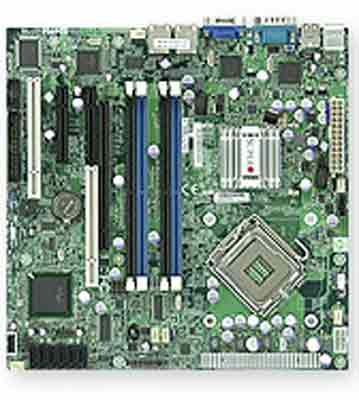

Supermicro X7SBL-LN2 Motherboard

• Storage:

  • Intel ® ICH9R SATA2 (3 Gbps) controller built-in
  • RAID 0, 1, 5, 10 support (Windows Only)
  • RAID 0, 1, 10 support (Linux)
  • Support for 1U Intelligent Platform Management Interface v.2.0 / 1.5
  • (Optional: AOC-SIMLC-HTC)

• Rear Panel I/O Ports:
  • Super I/O: Winbond 83627HG chip
  • Clock Generator: CK505
  • Six Serial ATA ports (3 Gbps performance)
  • Six SATA hard drives supported
  • 1 Floppy controller; 1.44 MB
  • 2 x RJ45 LAN port
  • 7x USB 2.0 / 1.1 compatible
  • 2 rear + 2 headers ( 4 ports ) + 1 on-board
  • 1x VGA Port
  • PS/2 keyboard and mouse ports
  • 1x Fast UART 16550 serial port
  • 1x Header

• Hardware Monitoring:

  • Monitors for CPU Cores +1.8V, +3.3V, +5V, ±12V, 3.3V Standby, 5V Standby, VBAT
  • CPU 4-Phase-switching voltage regulator with auto-sense from 0.8375V-1.6000V
  • Adjustable CPU clock frequency ratio (Only available if CPU is supported)
  • FAN: Total of six 4-pin fan headers
  • 6 fans with tachometer monitoring
  • Status monitor with firmware speed control
  • Low noise fan speed control
  • Status monitor for on/off control
  • Support 3-pin fans (without speed control)
  • Pulse Width Modulated (PWM) fan connector
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Monitor 2 (TM2) support
  • PECI
  • CPU / System Overheat LED
  • Suspend state indicator LED
  • Standby Power alert LED
  • Chassis Intrusion Detection
  • Chassis Intrusion Header
  • RoHS
  • Environmental Spec.: Operating Temperature: 10 °to 35 °C (50 °to 95 °F)
  • Non-operating Temperature: -40 °to 70 °C (-40 °to 158 °F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)


Motherboard Specifications

• Model:
  • Supermicro X7SBL-LN2 Motherboard


• Processor Support:

  • Single LGA775 ZIF Socket
  • Supports Quad-Core  Intel ® Xeon ® X3300/X3200  series
  • Supports Dual-Core  Intel ® Xeon ® E3100/3000  series
  • Supports  Intel ® Xeon ® processor L3360 and L3110  series
  • Supports  Intel ® Core2 Quad Q9000/Q8000/Q6000  series
  • Supports  Intel ® Core2 Duo E8000/E7000/E6000/E4000  series
  • Supports  Intel ® Pentium ® E5000/E2000series
  • Supports  Intel ® Celeron ® E1000 and 400series
  • NOTE: Intel Xeon processor L3014 requires an LGA771 socket and is not supported.

• Chipset:

  • Intel ® 3200 chipset
  • ICH9R chipset

• FSB:
  • 1333 / 1066 / 800 MHz system bus

• Memory:

  • Four 240-pin DIMM sockets
  • Supports up to 8 GB of unbuffered ECC / non-ECC DDR2 800/667MHz memory (Dual Channel)
  • DDR2 800/667MHz unbuffered ECC / non-ECC SDRAM, 240-pin gold-plated DIMMs
  • 256 MB, 512 MB, 1 GB, 2GB
  • 1.8V only

• Expansion Slots:

  • 1 (x8) PCI-E slot
  • 1 (x4) PCI-E (using x8) slot
  • 2x 32-bit 33MHz PCI (5V) slot

• On-Board Video:
  • On-board XGI Volari Z9S 32MB graphics

• On-Board LAN:

  • 1x Intel ® 82573V Gigabit PCI-Express Ethernet
  • 1x Intel ® 82573L Gigabit PCI-Express Ethernet
  • Supports 10Base-T, 100Base-TX, 1000BASE-TX, RJ45 output

• Form Factor/Dimensions:
  • MicroATX (uATX)
  • 9.6" width x 9.6 " length , (24.4cm x 24.4cm), 6 layers
• Manageability:

• Optional IPMI (Intelligent Platform Management Interface) 2.0
• SuperDoctor ® III
• Watch Dog
• NMI
• W83793 H/W Monitor
• Power Configurations: ACPI/APM Power Management
• Main Switch Override Mechanism
• Wake-On-Ring (WOR) header
• Wake-On-LAN (WOL) header
• Keyboard Wakeup from Soft-Off
• Power-on mode control for AC power loss recovery
• Internal / External Modem Rign-on
• Suspend to RAM (STR)
• BIOS:
  • 8Mb Flash EEPROM with Phoenix BIOS ®
  • Features: Plug and Play (PnP)
  • DMI 2.3 support
  • PCI 2.2
  • ACPI 1.0/2.0
  • USB Keyboard support
  • SMBIOS 2.3
• Special Features:
  • To ensure system stability, a 300W (minimum) ATX power supply [4-pin +12V AND (20 or 24-pin)] is recommended.
