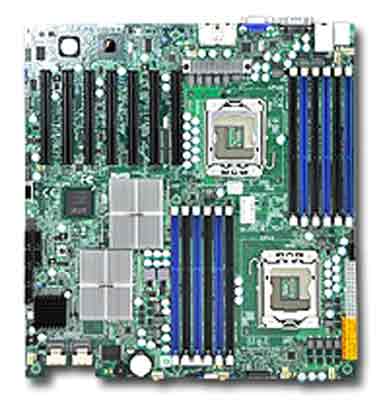

Supermicro X6DTH-6F
Motherboard
- Storage:
- SAS: LSI 6Gbps SAS 2008
- RAID 0, 1, 10 support
- (Optional: AOC-SAS2-RAID5-KEY) RAID
5 support
- Intel ICH10R SATA 3.0Gbps Controller
- RAID 0, 1, 5, 10 support (Windows)
- RAID 0, 1, 10 support (Linux)
- Support for Intelligent Platform Management Interface
v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN
support
- Winbond ® WPCM450 BMC
- Rear Panel I/O Ports:
- Super I/O: Winbond 83827HF chip
- 8 SASII / SATA ports
- Six Serial ATA ports
- Six SATA hard drives supported
- 2x RJ45 LAN ports
- 1x RJ45 Dedicated IPMI LAN port
- 2x USB rear ports
- 2x USB on-board
- 4x USB internal headers
- Total 8 USB 2.0 Compliant
- 1x VGA PortPS/2 keyboard and mouse ports
- 1 Fast UART 16550 serial port
- Hardware Monitoring:
- Monitors for CPU Cores, +1.8V, +3.3V, +5V, +12V, +3.3V
Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
- 6-Phase-switching voltage regulator
- FAN: Total of eight fan headers supporting up to 8 fans
- Eight 4-pin fan headers
- 8x fans with tachometer status monitoring
- Support 3-pin fans (w/o speed control)
- Low noise fan speed control (4-pin fan only)
- Monitoring for CPU and chassis environment
- Thermal Control for 8x fan connectors
- PECI
- Chassis intrusion detection
- Chassis intrusion header
- Environmental Specs.: Operating Temperature: 10 ° to 35 °
C (50 ° to 95 °F)
- Non-operating Temperature: -40 ° to 70 ° C (-40 ° to 158 °
F)
- Operating Relative Humidity: 8% to 90% (non-condensing)
- Non-operating Relative Humidity: 5 to 95%
(non-condensing)
|
Motherboard Specifications
- Model:
- Supermicro X6DTH-6F Motherboard
- Processor Support:
- Dual 1366-pin LGA Sockets
- Supports up to two Intel ® 64-bit Xeon ®processor(s)
of the same type below:
- Intel ® Xeon ®Processor 5600 Series (Westmere)
- Intel ® Xeon ®Processor 5500 Series (Nehalem-EP)
- Chipset:
- Intel ® 5520 (Tylersburg) chipset
- ICH10R + 2x IOH-36D
- Memory:
- 12x 240-pin DIMM sockets
- Supports up to 192 GB 1333 / 1066 / 800MHz DDR3 ECC
Registered memory
- Supports up to 48 GB 1333 / 1066 / 800MHz DDR3 ECC /
Non ECC Unbuffered memory
- Memory Mirroring supported
- Memory Type: 1333 / 1066 / 800MHz ECC Registered / ECC
or Non ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
- 1GB, 2GB, 4GB , 8GB , 16GB
- 1.5 V / 1.35V
- Error Detections: Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
- Supports Intel ® x4 and x8 Single Device Data Correction
(SDDC)
- Expansion Slots:
- 7 (x8) PCI-E 2.0 ( in x16 slot)
- On-Board LAN:
- Intel ® 82576 Dual-Port Gigabit Ethernet Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45
output
- Intel ® I/OAT 3 support for fast, scaleable, and
reliable networking
- VMDq support for better performance of
virtualization
- 1x Realtek RTL8201N PHY (dedicated IPMI)
- Form
Factor/Dimensions:
- Extended ATX
- 12" x 13" (30.5cm x 33cm)
- Manageability:
- IPMI (Intelligent Platform Management Interface) v1.5 /
2.0 with KVM support
- Power Configuration: ACPI / ACPM Power Management
- BIOS:
- 32Mb SPI Flash EEPROM with AMI ® BIOS
- Features: Plug and Play (PnP)
- PCI 2.2
- ACPI up to 3.0
- USB Keyboard support
- Special Features:
- Important Chassis Notes: To support the new generation
Intel ® Xeon ® processor-based motherboards, a Revision
K chassis
is recommended for most models. Please talk to your sales
representative or follow the link for details.
|
