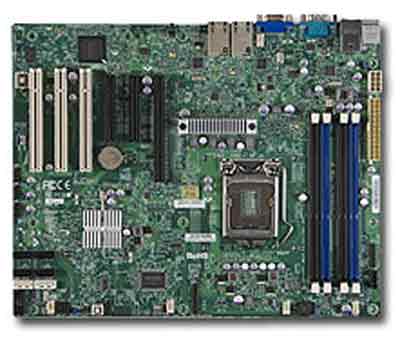

Supermicro X9SCA-F Motherboard

• Storage:
  • SATA 2.0 3Gbps with RAID 0, 1, 5, 10
  • SATA 3.0 6Gbps with RAID 0, 1
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC

• Rear Panel I/O Ports:
  • Super I/O: Nuvoton WPCM450RA0BX
  • 6x SATA ports total (4x 3Gb, 2x 6Gb)
  • 2x RJ45 Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
  • 8x USB 2.0 ports total (2x rear + 6x via header)
  • 1x VGA port
  • 2x Fast UART 16550 serial port (one header and one rear port)

• Hardware Monitoring:

  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
  • FAN: Total of 5 fan headers supporting up to 5 fans
  • Five 4-pin fan headers
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
  • CPU / System Overheat LED
  • +5V Standby alert LED
  • Chassis intrusion detection
  • Chassis intrusion header


Motherboard Specifications

• Model:
  • Supermicro X9SCA-F Motherboard


• Processor Support:

  • Intel ® Xeon ® processor E3-1200 & v2 series, Intel ® 2nd Gen and 3rd Gen Core i3, Intel ® Pentium ® and Celeron processors *** *
  • Socket H2 (LGA 1155)

• Chipset:
  • Intel ® C204 PCH chipset

• Memory:

  • 4x 240-pin DDR3 DIMM sockets
  • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
  • 1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • 8GB, 4GB, 2GB, 1GB
  • 1.5 V
  • Error Detection: Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

• Expansion Slots:

  • 1 (x16) PCI-E 3.0 slot***
  • 2 (x4) PCI-E 2.0 (in x8) slots
  • 3 PCI 32-bit slots

• On-Board Video:
  • BMC integrated Matrox G200

• On-Board LAN:

  • Intel ® 82574L, 2x Gigabit LAN ports
  • Virtual Machine Device Queues High efficient I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)

• Form Factor/Dimensions:
  • ATX
  • 12" x 9.6", (30.48cm x 24.4 cm)
• Manageability:

• IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• SuperDoctor ® III
• Watch Dog
• NMI
• Power Configurations: ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Power-on mode for AC power recovery
• Internal/External modem ring-on
• BIOS:
  • 32Mb SPI Flash EEPROM with AMI BIOS
  • Features: DMI 2.3
  • PCI 2.3
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3

• Special Features:
  • Important Chassis Notes: To support the new generation Intel ® Xeon ® processor-based motherboards, aRevision K  chassis is recommended for most models. Please talk to your sales representative or follow the link for details.
