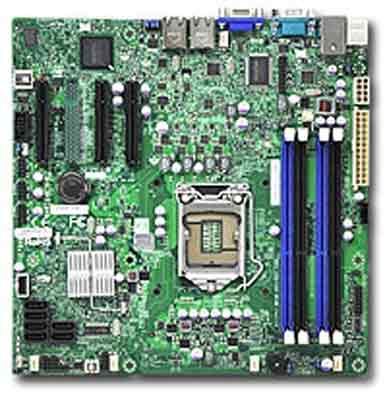

Supermicro X9SCL+-F Motherboard

• Storage:
  • 6x SATA2 (3Gbps) w/ RAID 0, 1, 5, 10
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
  • Nuvoton WPCM450 BMC

• Rear Panel I/O Ports:
  • Super I/O: Nuvoton NCT6776F
  • 6 SATA 2.0 ports
  • 6 SATA hard drives supported
  • 2x Gigabit Ethernet LAN ports
  • 1x RJ45 Dedicated IPMI LAN port
  • 9x USB 2.0 ports total (2x rear + 6x via header + 1x type A)
  • 1x VGA port
  • 2x Fast UART 16550 serial port (one header and one rear port)


• Hardware Monitoring:

  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
  • FAN: Total of 5 fan headers supporting up to 5 fans
  • Five 4-pin fan headers
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
  • Temperature: Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
  • CPU / System Overheat LED
  • +5V Standby alert LED
  • Chassis intrusion detection
  • Chassis intrusion header


Motherboard Specifications

• Model:
  • Supermicro X9SCL+-F Motherboard


• Processor Support:

  • Intel ® Xeon ® processor E3-1200 & v2 series, Intel ® 2nd Gen and 3rd Gen Core i3, Intel ® Pentium ® and Celeron processors *** *
  • Socket H2 (LGA 1155)

• Chipset:
  • Intel ® C202 PCH chipset

• Memory:

  • 4x 240-pin DDR3 DIMM sockets
  • Supports up to 32 GB DDR3 ECC Un-Buffered memory (UDIMM)
  • 1333/1600MHz*** ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • 8GB, 4GB, 2GB, 1GB
  • 1.5 V
  • Error Detection: Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

• Expansion Slots:

  • 2 (x8) PCI-E 3.0 in x8 slots***
  • 1 (x4) PCI-E 2.0 in x8 slots

• On-Board Video:
  • BMC integrated Matrox G200

• On-Board LAN:

  • Two Intel ® 82574L Gigabit Ethernet Controllers
  • Virtual Machine Device Queues High efficient I/O overhead
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
  • 1x Realtek RTL8201N PHY (dedicated IPMI)

• Form Factor/Dimensions:
  • Micro ATX
  • 9.6" x 9.6", (24.4cm x 24.4 cm)
  Manageability:

• IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
• SuperDoctor ® III
• Watch Dog
• NMI
• Power Configurations: ACPI / ACPM Power Management
• Main Switch Override Mechanism
• Power-on mode for AC power recovery
• Internal/External modem ring-on
• BIOS:
• 32Mb SPI Flash EEPROM with AMI BIOS
• Features: DMI 2.3
• PCI 2.3
• ACPI 1.0 / 2.0
• USB Keyboard support
• SMBIOS 2.3
