• BIOS:
  • Phoenix BIOS on 4/8Mbit Flash ROM
  • Supports BIOS Boot Specification v1.1 (BBS)
  • Supports ACPI; supports SMBIOS v2.3
  • Supports LAN remote boot (PXE)

• On-Board Audio:
  • Intel ® ICH5R AC'97 compliant audio link
  • AD1981B CODEC; Front panel audio header
  • Line-in, Line-out, Mic-in rear vertical jacks
  • One 4-pin CD-ROM audio input header
  • One 4-pin Auxiliary header

Thunder i7525 Specifications

• Model:

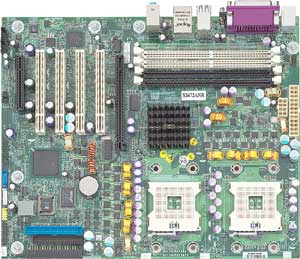

  • Tyan Thunder i7525 (S2676) Motherboard

• Processor Support:
  • Dual mPGA604 ZIF sockets; FSB support 800MHz
  • Up to two Intel ® Xeon processors
  • Dual onboard 4-phase VRDs (VRD 10.1 spec.)

• Chipset:
  • Intel ® E7525 chipset; MCH +ICH5R +PXH +FWH
  • Intel ® PXH supports two PCI-(X) buses
  • Winbond Super I/O chip
  • Analog Device ADM1027 hardware monitor chip



• FSB:
  • 800MHz FSB



• Memory:
  • Eight 240-pin 1.8V DDR2-400 DIMM sockets
  • Supports up to 32GB* DDR2 Reg/ECC RAM
  • Dual channel memory bus

    * NOTE : 16GB/32GB must be single rank 2GB/4GB modules.



• Expansion Slots:
  • One PCI Express x16 Graphics slot
  • One PCI-X 64-bit 133/100/66MHz (3.3V) slot
  • Two PCI-X 64-bit 100/66MHz (3.3V) slots
  • Two PCI 32-bit 33MHz (5V) slot

• On-Board LAN:
  • Broadcom ® BCM5751 PCI Express GbE LAN

• Form Factor:
  • SSI EEB v3.5 footprint; 8-layer PCB (12" x 13", 305 x 330.2mm)
  • EPS12V (24-pin + 8-pin) power connectors
  • Stacked PS/2 keyboard and mouse ports
  • Stacked one serial port and one parallel port
  • Stacked four USB 2.0 ports
  • One RJ-45LAN port with LEDs
  • One IEEE-1394a port
  • SPDIF-out port
  • One audio Line-in, Line-out, Mic-in vertical jacks (Amplifier integrated)



• Manageability:
  • 3-pin fan headers with tachometer monitoring
  • One 3-pin Chassis intrusion header
  • Temperature, voltage, & fan RPM monitoring
