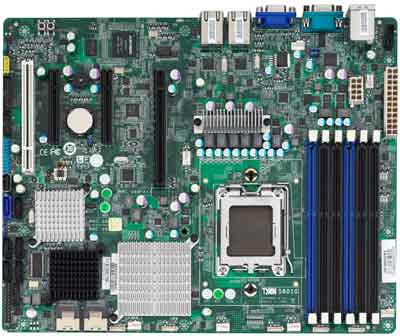

TYAN S8010 (S8010WGM2NR) Motherboard

• Storage:
  • SAS: (2) Mini-SAS connectors (totally support 8 ports)
  • LSI SAS2008
  • 6.0 Gb/s
  • RAID 0/1/1E/10 (LSI Integrated RAID)
  • SATA: (6) SATA
  • AMD SP5100
  • 3.0 Gb/s
  • RAID 0/1/10/5 (Promise Integrated Software RAID)

• Rear Panel I/O Ports:
  • (7) USB2.0 ports (2 at rear, 4 via cable, 1 type A onboard)
  • (1) COM port (rear)
  • (2) Mini-SAS (4-in-1) connectors
  • (1) D-Sub 15-pin VGA port

• Internal I/O Interface:
  • Universal 24-pin + 8-pin power connectors / ATX12V
  • (1) 2x12-pin SSI front panel header
  • (1) 1x5-pin header
  • (6) SATA-II connectors

• BIOS:
  • AMI / 4MB
  • Plug and Play (PnP) /PCI2.3 /WfM2.0 /SMBIOS2.3 /PXE boot / ACPI 2.0 power management /Power on mode after power recovery / User-configurable H/W monitoring

• Hardware Monitoring:
  • Winbond W83795G
  • Monitors voltage for CPU, memory, chipset & power supply
  • FAN: Total (7) 4-pin headers
  • Monitors temperature for CPU & system environment
  • Fan fail LED indicator / Over temperature warning indicator / Fan & PSU fail LED indicator
  • Watchdog timer support

Motherboard Specifications

• Model:
  • TYAN S8010 (S8010WGM2NR) Motherboard


• Processor Support:
  • AMD 45nm 4-Core/6-Core Opteron 4100 Series Processors (Lisbon) / AMD 32nm 4-Core/6-Core/8-Core Opteron 4200 Series Processors (Valencia)
  • Socket Type/Qty.: C32 / (1)
  • Average CPU Power (ACP) wattage: Up to 75W

• Chipset:
  • AMD SR5670 + SP5100
  • Super I/O: Winbond W83627

• FSB:
  • Up to 5.2 GT/s Hyper-Transport link support

• Memory:
  • (6) DIMM slots
  • U/RDDR3 & LV RDDR3, 800/1066/1333 MHz
  • Up to 64GB DDR3 667 RDIMM/ 16GB DDR3 1066 UDIMM
  • Memory Channel/Voltage: 2 Channels per CPU/1.5V or 1.35V

• Expansion Slots:
  • (2) PCI-E Gen.2 x8 slots / (1) PCI-E Gen.2 x16 slot (w/ x8 link)
  • (1) PCI 32-bit slot

• On-Board Video:
  • D-Sub 15-pin
  • Up to 1600x1200@60Hz
  • Aspeed AST2050

• On-Board LAN:
  • Port Qty.: Total (3) ports, (1) dedicated for IPMI
  • Intel 82574L
  • PHY: Broadcom BCM5221 PHY (dedicated for IPMI connection)

• Form Factor/Dimensions:
  • ATX
  • 12"x9.6" (305x243.8mm)
• Manageability:
  • Onboard Aspeed AST2050
  • IPMI 2.0 compliant baseboard management controller (BMC) / USB 2.0 virtual hub / BIOS update
  • 24-bit high quality video compression / Dual 10/100 Mb/s MAC interfaces

• Accessories:
  • (1) S8010 Motherboard
  • (1) User's manual / (1) Quick Ref. Guide
  • (1) TYAN installation CD
  • (1) I/O Shield
  • 6) SATA signal cables
  • (3) Mini-SAS cables
