Tyan Thunder K8SE S2892G3NR-RS

Tyan Thunder K8SE S2892G3NR-RS

Part # 108396

Condition : New- Retail Box

| Warranty: 365 days

Brand : Tyan
| Log in to add review

Rate this product:


Loading...

Click "Notify" to get an alert when it's available

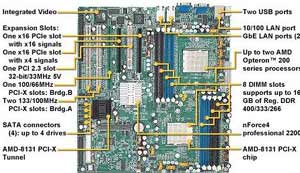

Tyan Thunder K8SE Dual 940 Socket Motherboard

Tyan Thunder K8SE Motherboard

Dual 940 Socket, nVIDIA nForce, 8 DDR-DIMM, Video, Lan, USB, 2 PCI Express 16x, 1 PCI, 4 PCI-X, 1 SO-DIMM, IDE, SATA2, RAID Support.

Tyan Thunder K8SE S2892G3NR-R Dual 940 Socket, nVIDIA nForce, 8 DDR-DIMM, Video, Lan, USB, 2 PCI Express 16x, 1 PCI, 4 PCI-X, 1 SO-DIMM, IDE, SATA2, RAID Support.

  • Internal I/O Interface:
    • One floppy connector supports up to two drives
    • One parallel port header and two serial
      (one connector, one header)
    • Four USB 2.0 ports
      (two rear connector & two front panel headers)
    • One 15-pin VGA connector
    • PS/2 mouse and keyboard connectors

  • Storage/RAID:
    • Two IDE dual-drive ports support up to four EIDE devices
    • Support for UDMA 133/100/66/33 IDE drives & ATAPI devices
    • Two integrated dual port SATA II controllers
    • Four SATA connectors: up to four drives
    • Supports 3.0Gb/s per port
    • NvRAID v2.0 support
    • RAID 0, 1, 0 + 1

  • Manageability:
    • Total of nine 3-pin fan headers
    • Six fan headers with monitoring
    • One 2-pin Chassis Intrusion header
    • Temperature, voltage and fan monitoring
    • TYAN Server Management Daughter card
      (optional) supports features listed below via
      IPMI header
    • QLogic Zircon Baseboard Management Controller
      (BMC) based on powerful ARM7 technology
    • Tailored for IPMI highest 2.0 spec.
    • Supports KCS and BT styles
    • Flexible Windows or Linux Management Solution
    • Supports RMCP and SNMP protocols
    • Supports ASF standard and EMP
    • I2C serial multi-master controllers and UARTs
    • Build-in IPMB connector
    • Remote power on/off and reset support
      (IPMI-over-LAN)

  • Form Factor:
    • SSI EEB v3.0 Footprint, fits most Rackmount E-ATX chassis (12"x13"; 304.8x330.2mm)

Thunder K8SE Specifications

  • Model:
    • Tyan Thunder K8SE (S2892)
  • Processor Support:
  • Chipset:
    • AMD-8131 PCI-X Tunnel
    • NVIDIA nForce Prof. 2200 (CrushK8-04 Pro)
    • Winbond W83627HF Super I/O ASIC
    • Analog Devices ADT7463 Hardware Monitoring IC

  • Memory:
    • 128-bit dual channel memory bus
    • Total eight 184-pin 2.5-Volt DDR DIMM sockets (four per CPU)
    • Supports up to 16GB of Registered DDR
    • Supports ECC type memory modules
    • Supports DDR 400 / 333 / 266 memory

  • Expansion Slots:
    • One x16 PCI Express slot with x16 signal
    • One x16 PCI Express slot with x4 signal
    • One PCI 2.3 compliant 5V tolerant 32bit/33MHz
    • Two independent 64-bit PCI-X buses
      - Two 133/100 MHz PCI-X slots from Bridge A
      - One 100/66 MHz PCI-X slot from Bridge B
      - One 100/66 MHz max Tyan TARO SODIMM
      from Bridge B
  • On-Board LAN:
    • One Broadcom BCM5704C dual-ch GbE
      - Two RJ-45 LAN connectors with LEDs
      - Connected to PCI-X Bridge B
      - Two Front Panel LED headers
    • One Intel ® 82551QM 10/100 Mbps Ethernet
      controller
      - One RJ-45 LAN connectors with LEDs, stacked
      on rear two USB 2.0 ports
      - Connected to 32bit/33MHz PCI 2.3 bus
      - One Front Panel LED header

  • BIOS:
    • SSI EEB v3.0 Footprint, fits most Rackmount E-ATX chassis (12"x13"; 304.8x330.2mm)
    • Supports ACPI 2.0 and SRAT
    • Supports PXE via Ethernet, USB device boot
    • SMBIOS 2.3.1, BBS 1.1 compliant
    • Headless Operation via serial console redirect
    • 48-bit LBA Support
    • Phoenix BIOS on 8Mbit LPC Flash ROM

  • On-Board Video:
    • ATI® RAGE XL 8MB PCI graphics controller
