• Storage:
  • Single channel master mode supports up to two IDE devices
  • Support for ATA-133/100/66/33
  • IDE drives and ATAPI compliant devices

• Rear Panel I/O Ports:
  • (1) Stacked PS/2 mouse and keyboard ports
  • (3) Audio jacks (from bottom: line out <green>, line in <blue>, MIC <pink> (optional)
  • 1 COM1 port
  • 1x VGA port
  • (2) Double-decked USB 2.0 ports and one RJ45 10/100/1000 Base-T port with link/activity LED

• Internal I/O Interface:
  • 1 Floppy connector supports up to two drives
  • 4 USB 2.0 ports (2 rear, 2 via cable)
  • (1) COM port
  • Tyan 2 x 9 front-panel pin header

• Integrated Serial ATA Controller:
  • (3) SATA2 host controllers embedded
  • (6) SATA2 ports at 3.0Gb/s per direction per ch.
  • Serial ATA 2.0 specification compliant
  • nVIDIA MediaShield supports for RAID 0, 1, 0+1, 5, and JBOD
  • HDD LED connector


• Optional IPMI Card:
  • M3291, IPMI 2.0 Remote System Mgmt. card
  • - Renesas H8S2167 BMC controller
  • - BT, KCS, Logging support; IPMI-over-LAN
  • - Remote Power on/off and reset


• System Management:
  • SMSC SCH5017 w/ 2x EMC6D103
  • 2x CPU fan and 2x 4-pin system fan headers, w/tachometer input and w/ auto fan control
  • Temperature & voltage monitoring
  • Watchdog timer support
  • Port 80 code display LED


• Power:
  • EPS 12V support, onboard 4-phase VRD
  • Universal 24-pin + 8-pin power connectors
  • 4-pin auxiliary power connector

Motherboard Specifications

• Model:

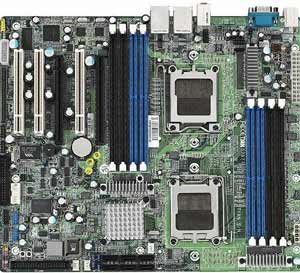

  • Tyan Thunder n3600B (S2927A2NRF) Dual Opteron 2000

• Processor Support:
  • Dual 1207-pin sockets support AMD Opteron (Rev. F) 2000 series processors
  • Uses the standard 3 1/2"/ 89mm socket connector
  • Up to 1.0 GHz Hyper-Transport link support

• Chipset:
  • nVIDIA NFP3600; SMSC SCH5017

• FSB:
  • 1000 MHz

• Memory:
  • Dual channel memory bus
  • (8) 240-pin DDR2 DIMM sockets for up to 32GB
  • Supports reg., ECC, DDR2 400/533/667 DIMMs

• Expansion Slots:
  • (1) PCI-E x16 (x16 signal; PCI-E1)
  • (1) PCI-E x16 (x8 signal; PCI-E2)
  • (3) PCI v2.3 32-bit/33MHz slots (PCI 1~3)
  • Total of five usable expansion slots

• On-Board Video:
  • XGI Volari Z7 (XG20) graphics controller
  • 16MB Frame Buffer of video memory


• Integrated Audio (S2927A2NRF SKU):
  • Realtek ALC262 audio CODEC
  • HD Audio (High-Definition Audio) supported
  • 2 x 5 pin header for front panel audio connector
  • CD-in connector


• Integrated PCI 1394 (optional):
  • VIA VT6307/6308 PCI FireWire (1394) controller
  • Two 1394 ports (via cable)

• On-Board LAN:
  • Two NFP3600 integrated MAC with two Marvell
  • 88E1116 single port Gigabit Ethernet PHY
  • - Integrated TCP Offload Engine (TOE)
  • - IEEE802.3 compliant, WOL/PXE support
  • - Pin header for front panel LAN LED

• PCI-E Assignment:
  • x16 PCI Express with x8 bandwidth
  • x16 PCI Express with x8 bandwidth
  • LSI 1068E with x8 bandwid
  • NEC nPD720400 with x4 bandwidth


• Regulatory:
  • FCC Class B (Declaration of Conformity)
  • CE (Declaration of Conformity)

• BIOS:
  • AMI BIOS on 8Mbit LPC Flash ROM
  • Supports ACPI 2.0
  • PnP, DMI 2.0, WfM 2.0 Power Management


• Form Factor:
  • ATX footprint (12" x 10.2"; 305mm x 259mm)
